Tighten Bolts—Rear Axle

PY47357-UN-23AUG17

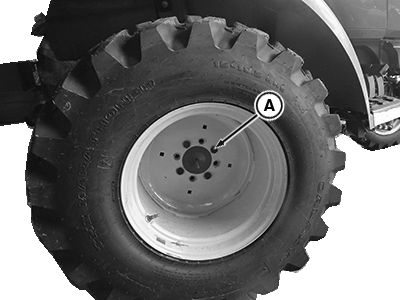

A - Disk-to-Flange Bolts

Tighten disk-to-flange bolts (A) in the following locations to specifications:

Item	Measurement	Specification
Rear Axle Disk-to-Flange (Steel Disk)	Torque	220 N·m (162 lb·ft)
