Before Starting the Engine

TS220
TS220-UN-15APR13

PY49652
PY49652-UN-14NOV17

APY07748
APY07748-UN-26FEB19

PY45736
PY45736-UN-17AUG17

APY07752
APY07752-UN-04MAR19

A - Gear Shift Lever

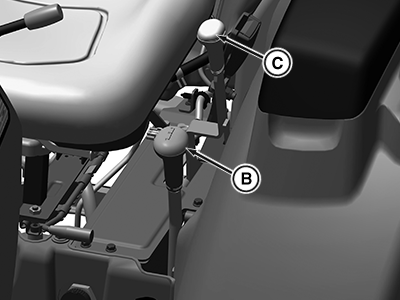

B - Range Shift Lever

C - PTO Lever

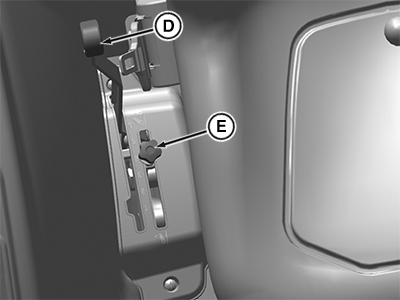

D - Position Control Lever

E - Position Control Lever Stop

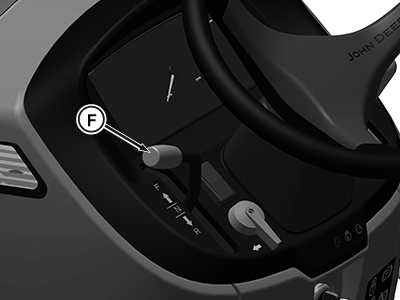

F - Forward-Reverse Lever

CAUTION: Prevent asphyxiation. Engine exhaust fumes can cause sickness or death.

Always operate the engine in an area with proper ventilation.

  1. Check fuel gauge to ensure that tractor has enough fuel.

  2. Place gear shift lever (A), range shift lever (B), and PTO lever (C) in NEUTRAL position.

  3. Place position control lever (D) in lowered position.

    NOTE: Engine does not start if the forward-reverse lever, range lever and PTO lever are not in neutral position.

  4. Check indicator lights. Indicators illuminate when the key switch is turned to the ON position.

    If any indicator does not function properly, contact your John Deere dealer.

DP97633,0000346-19-20190304
