Start the Engine

TS177-UN-11JAN89

Machinery Runaway

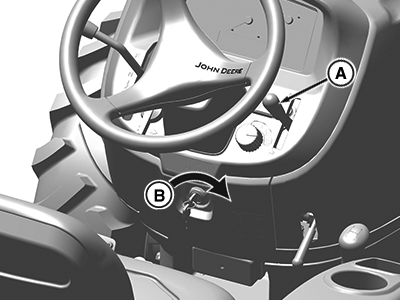

PY49641-UN-13NOV17

A - Hand Throttle

B - Key Switch

1. Push hand throttle (A) forward to idle position (1/3 of full throttle).

   NOTE: Engine may not start with the hand throttle in completely down position.

2. CAUTION: Avoid possible injury or death from a machine runaway.

   DO NOT start engine by shorting across starter terminals. Machine may start in gear and start moving, bypassing normal circuit.

   Before starting the engine, place the range lever, PTO lever and forward-reverse lever in NEUTRAL position. Engine does not start if range lever, forward-reverse lever and PTO lever are not in NEUTRAL position.

   Never start engine while standing on ground.

   IMPORTANT: DO NOT run a cold engine at full throttle.

   Turn the key switch (B) fully clockwise and then engage the starter. Release key when engine starts. If the key is released before the engine starts, wait until starter and engine stop turning before trying again.

   IMPORTANT: DO NOT operate the starter longer than 20 seconds at a time. If engine does not start, wait at least two minutes for the starter motor to cool before trying again. If engine does not start in four attempts, refer to Troubleshooting section.
