Check Neutral Start System

APY02433
APY02433-UN-31DEC18

APY07751
APY07751-UN-26FEB19

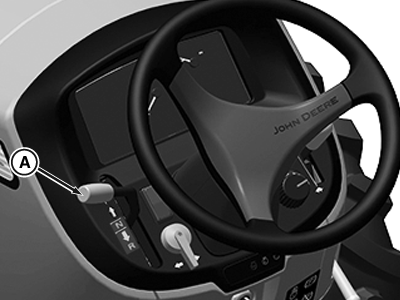

A - Forward/Reverse Lever

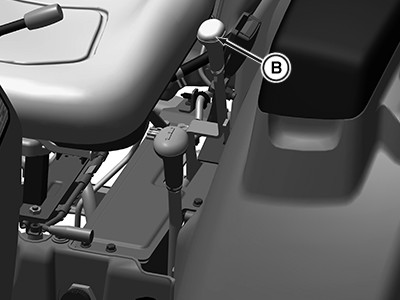

B - PTO Lever

Your John Deere tractor is equipped with interlocks to prevent inadvertent movement when the engine is started. Turning the key switch with the clutch pedal depressed must start the engine if all of the following conditions exist:

  • Forward/Reverse Lever (A) in NEUTRAL position
  • Range Lever (A) in NEUTRAL position
  • PTO Lever (B) in disengaged position

CAUTION: If the starter turns engine in any of the following steps, have the neutral start system repaired by your John Deere dealer.

Turning the key switch to the start position must NOT start the engine, if either of the following exist:

  • Forward/Reverse Lever (A) not in NEUTRAL position
  • Range Lever (A) in NEUTRAL position
  • PTO Lever (B) in engaged position

DP97633,0000349-19-20190226
