Operate Park Brake Lever

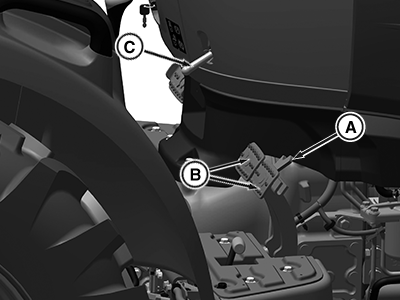

APY02477-UN-19FEB18

A - Brake Pedal Lock

B - Brake Pedals

C - Park Brake Lever

CAUTION: To prevent rapid brake wear, Do not drive tractor with park brake set.

To set park brake:

1. Engage brake pedal lock (A).
2. Press brake pedals (B).
3. Lift park brake lever (C) to top position. Parking brake light will illuminate.
4. Release brake pedals (B).

To release park brake:

1. Press brake pedals (B).
2. Lift park brake lever (C).
3. Release park brake pedals (B).
4. Release park brake lever (C).
