Operate Tractor PTO

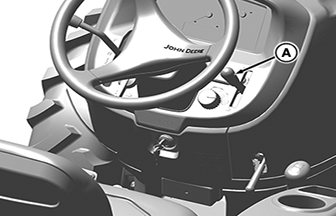

  1. Start the engine. Depress the clutch pedal and push hand throttle lever (A) forward until engine speed is sufficient to start PTO implement. Engine speed must be less than 2700 rpm.

    APY08249
    APY08249-UN-10JUL18

    APY07747
    APY07747-UN-26FEB19

    A - Hand Throttle Lever

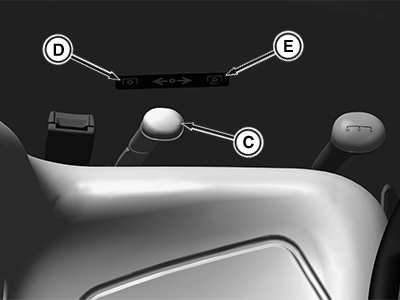

    C - PTO Control Lever

    D - PTO at Neutral Position

    E - Engage PTO at 540 rpm


  2. To engage standard 540 rpm PTO, slide PTO control lever (C) towards right and then rearward (E).

  3. Set engine speed to 2400 rpm for 3025D, 2800 rpm for 3035D and 3043D for 540 PTO operation.

  4. Release the clutch pedal to begin PTO operation.

  5. To disengage PTO, depress the clutch pedal, and move PTO control lever (C) to NEUTRAL position (D) as shown.

CAUTION: Turn key OFF to stop engine, set brakes and make sure that all mechanisms have stopped before cleaning out machine or making any adjustments to PTO-driven implement.

DP97633,000036B-19-20190226
