Clutch Pedal Free Play Adjustment

Make sure that the traction clutch is fully engaged, when the clutch pedal is released and fully disengaged, when the pedal is depressed.

  1. To know how far the pedal travels before resistance is felt, depress clutch pedal.

  2. Measure clutch pedal free play distance (A).

  3. If free play distance not within specifications, loosen lock nut (B) and adjust clutch linkage (C) as necessary.

    ItemMeasurementSpecification
    Clutch PedalFree Play15 - 20 mm (0.6-0.8 in)

  4. Make sure that clutch pedal free play distance (A) is correct.

  5. Tighten the lock nut (B) once clutch pedal adjustment is complete.

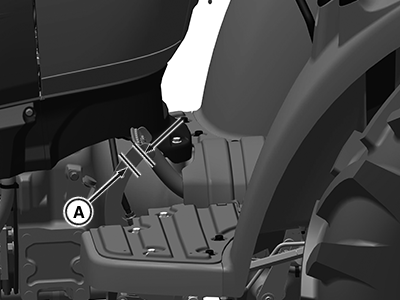

APY02481
APY02481-UN-19FEB18

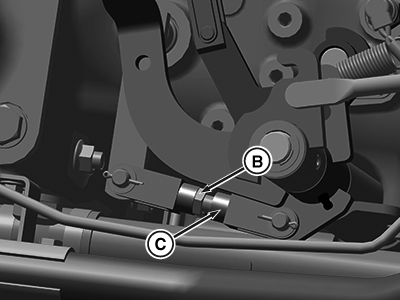

APY02448
APY02448-UN-17JAN18

A - Clutch Pedal Free Play

B - Lock Nut

C - Clutch Linkage

DP97633,00003AB-19-20190225
