Check and Adjust Brake Pedal Free Play

APY07625-UN-22MAY18

APY02483-UN-20FEB18

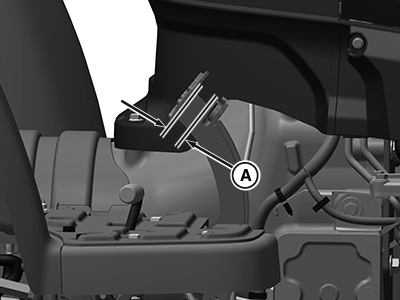

A - Brake Pedal Free Play

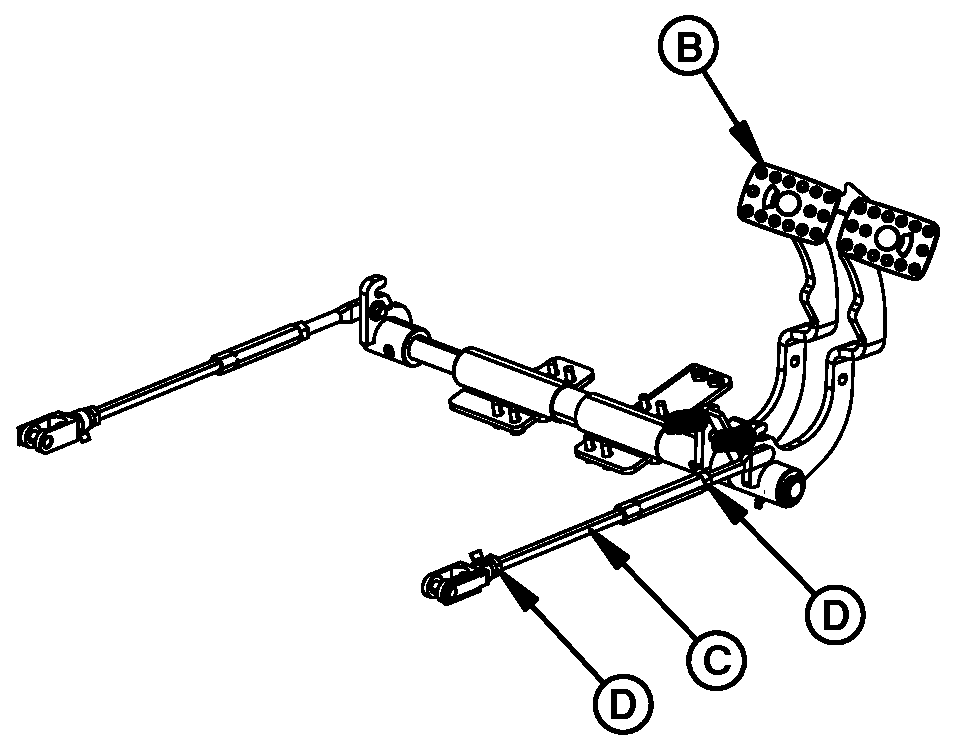

B - Brake Pedal

C - Turnbuckle

D - Nut (2 used)

1. Park on a level surface. Chock wheels to prevent machine movement.

2. Unlock brake pedals (B).

3. Check free play (A) of each brake pedal at top of stroke.

4. Linkage must be as per specification.

   Item	Measurement	Specification
   Brake Pedal	Free Play	35-40 mm (1.3-1.5 in)

5. To adjust linkage, loosen nuts (D).

6. Adjust the turnbuckle (C) until free play is to the specification.

7. Tighten nuts (D).
