Tractor Controls

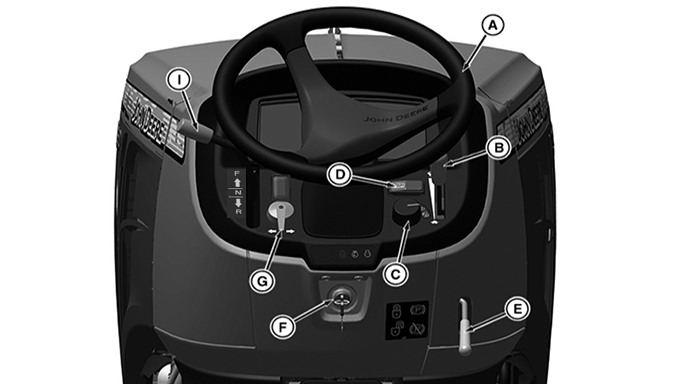

APY08219-UN-31DEC18
For 3025D

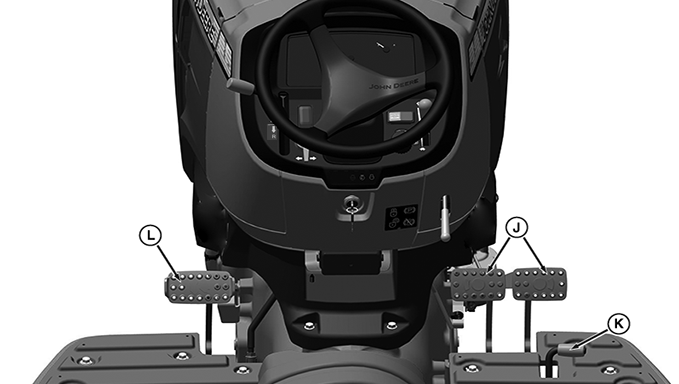

APY08220-UN-31DEC18
For 3025D
A - Steering Wheel
B - Hand Throttle
C - Light Switch
D - Display Mode Switch
E - Park Brake Lever
F - Key Switch
G - Turn Signal and Hazard Switch
I - Forward Reverse Lever
J - Brake Pedals
K - Foot Throttle
L - Clutch Pedal

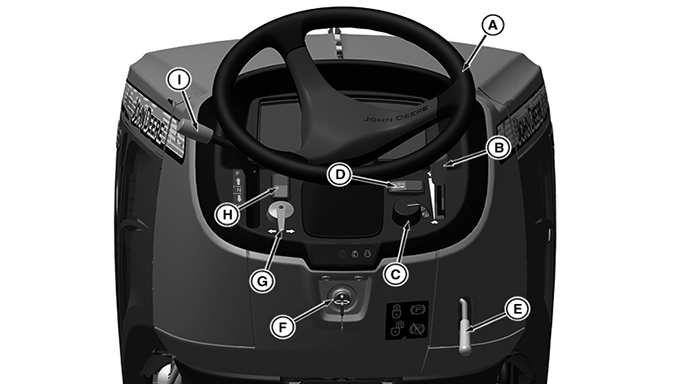

APY08221-UN-31DEC18
For 3035D and 3043D

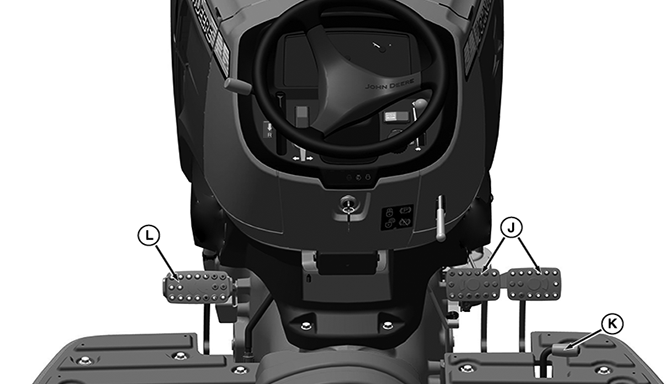

APY08222-UN-31DEC18
For 3035D and 3043D
A - Steering Wheel
B - Hand Throttle
C - Light Switch
D - Display Mode Switch
E - Park Brake Lever
F - Key Switch
G - Turn Signal and Hazard Switch
H - DPF Regeneration Switch
I - Forward Reverse Lever
J - Brake Pedals
K - Foot Throttle
L - Clutch Pedal

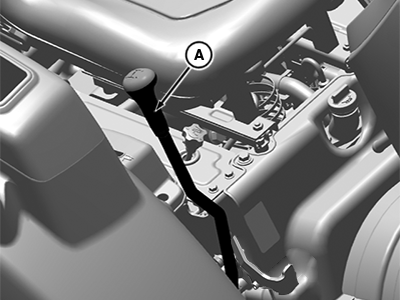

PY49652-UN-14NOV17

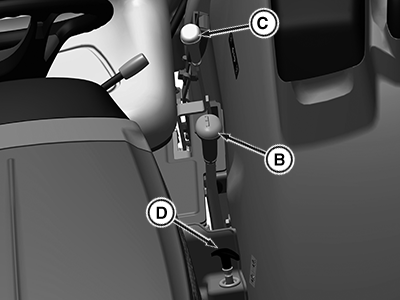

APY07744-UN-26FEB19

PY44489-UN-28AUG17

PY44490-UN-28AUG17

PY49653-UN-14NOV17
A - Gear Shift Lever
B - Range Shift Lever
C - PTO Lever
D - MFWD Lever
E - Position Control Lever
F - Position Control Lever Stop
G - Rockshaft Rate-of-Drop Knob
H - Differential Lock Pedal
|
|
DP97633,00003AF-19-20190226
|
|
