Select Seat Position

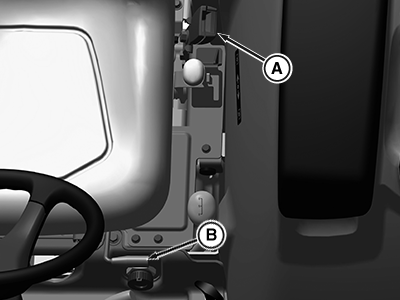

APY07745-UN-26FEB19

A - Seat Belt

B - Seat Adjustment Lever

Seat can be moved forward or backward depending on operator's requirement. To move the seat on either side, lift seat adjustment lever (B) up as shown and push the seat forward or backward as per convenience.

Seat belt (A) must fit tightly across abdomen. Seat belt extends as necessary to fit comfortably.

CAUTION: Use a seat belt when you are operating with a roll-over protective structure (ROPS) to minimize chance of injury from an accident such as an overturn. DO NOT use seat belt when ROPS is folded down.
