Observe Engine Work and Idle Speeds

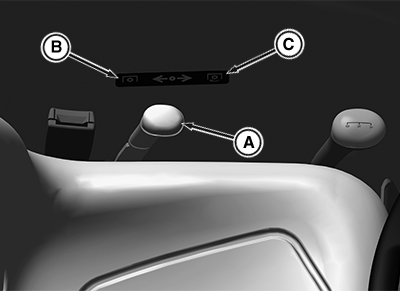

  1. APY07746
    APY07746-UN-26FEB19

    A - PTO Lever

    B - PTO at Neutral Position

    C - PTO at 540 rpm Position

    Low idle speed must be 1200 ± 50 rpm for 3025D, 950 ± 50 rpm for 3035D and 3043D. At light or no load, full throttle speed reaches to 2550 rpm for 3025D, 2950 rpm for 3035D and 3043D.


  2. Normal working speed is 2800 rpm rated speed and engine can be put under full load within these limits.

  3. For correct PTO speed, run the engine at 2400 rpm for 3025D, 2800 rpm for 3035D and 3043D, engage PTO (A) at 540 rpm position (C) (load requires full engine power) for PTO operations.

DP97633,00003B2-19-20190226
