Operating Transmission

PY49471-UN-31DEC18

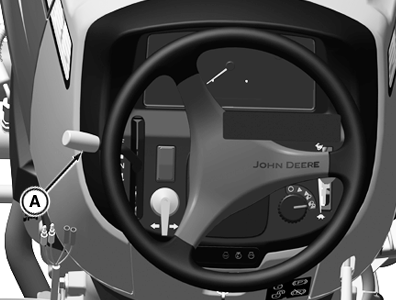

Forward-Reverse Lever

APY07749-UN-26FEB19

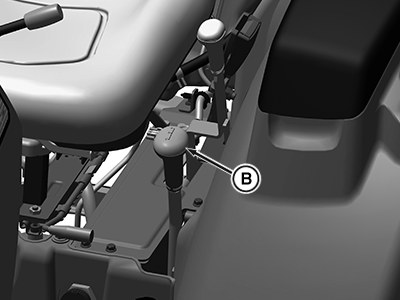

Range Shift Lever

A - Forward-Reverse Lever

B - Range Shift Lever

PY49655-UN-18JAN18

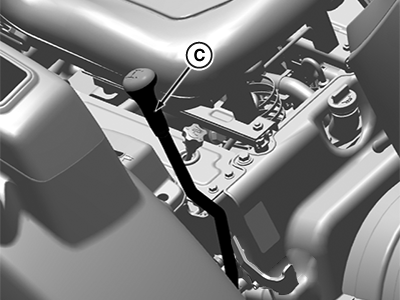

Gear Shift Lever

C - Gear Shift Lever

• Forward and reverse speed directions can be obtained through forward-reverse lever (A).
• Range shift lever (B) provides two range speeds (range A and range B).
• Gear shift lever (C) provides four forward travel speeds with range A selected and provides four forward travel speeds with range B selected.
• Using forward-reverse, range and gear shift levers in different combinations, eight forward speeds, and eight reverse speeds can be obtained.
• Forward-reverse lever, Range lever and PTO lever must be in neutral for the engine to be started.

Forward-Reverse Lever: With tractor at rest, select desired travel direction (forward or reverse). Travel direction can be changed by depressing the clutch pedal and shifting forward-reverse lever to F or R as required.

CAUTION: To change direction, tractor must be at rest while shifting forward-reverse lever to any direction.

1. After the tractor is stopped, lower engine rpm to idle speed.
2. Depress clutch pedal fully.
3. Select desired direction (forward or reverse).

Range Shift: Select desired speed range (A and B).

Gear (speed) Shift:

1. Select desired speed (1).
2. Slowly release the clutch pedal to gradually take up the load.
3. Increase engine speed once shifting is complete.
4. With tractor in motion, depress clutch pedal fully to select the desired speeds (1, 2, 3, 4) and slowly release the clutch pedal to gradually take up load.

NOTE: 1. Change range shift and gear shift lever by depressing clutch and select the respective gears.

2. When the tractor is started with speed gear engaged (forward-reverse lever is in neutral), the tractor does not move until forward-reverse lever is set to forward or reverse and range shift is in A or B.
