Stopping Tractor

  1. CAUTION: Always place the forward-reverse lever, gearshift lever, and range shift lever in NEUTRAL and set park brakes before dismounting. Leaving transmission in gear with engine off MAY NOT prevent tractor from moving.

    APY08238
    APY08238-UN-06JUL18

    APY08239
    APY08239-UN-04JUL18

    APY07750
    APY07750-UN-26FEB19

    APY08241
    APY08241-UN-04JUL18

    APY08242
    APY08242-UN-04JUL18

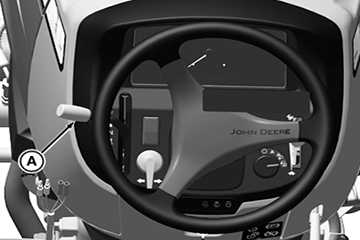

    A - Forward-Reverse Lever

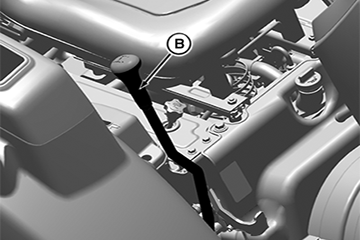

    B - Gear Shift Lever

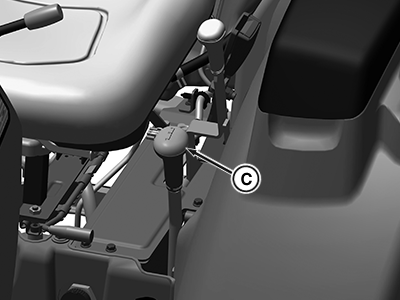

    C - Range Shift Lever

    D - Hand Throttle Lever

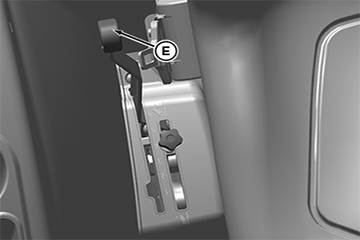

    E - Position Control Lever

    Stop the tractor and place forward-reverse lever (A), gear shift lever (B), and range shift lever (C) are in NEUTRAL position.


  2. Lower all equipment to ground using rockshaft position control lever (E).

  3. Pull hand throttle lever (D) down to low idle position. Allow engine to idle for 1—2 minutes.

    IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly can damage these parts due to overheating or lack of lubrication.

  4. CAUTION: Remove the key from the key switch to prevent operation by untrained personnel.

    APY08243
    APY08243-UN-04JUL18

    APY08244
    APY08244-UN-04JUL18

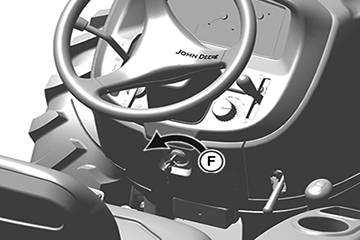

    F - Key Switch-off Position

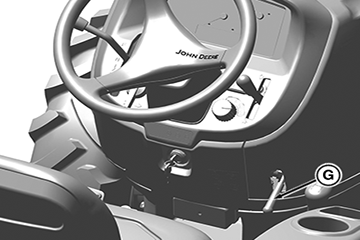

    G - Park Brake Lever

    Turn key switch to OFF position (F).


  5. Press both the brake pedals (brake pedal lock must be in engaged) and move park brake lever (G) upwards to apply park brake. See Operate Park Brake Lever in Operator Platform section.

DP97633,00003B4-19-20190226
