Fuse and Relay Size and Function (For 3025D)

APY02442-UN-18JUL18

APY07753-UN-06MAR19

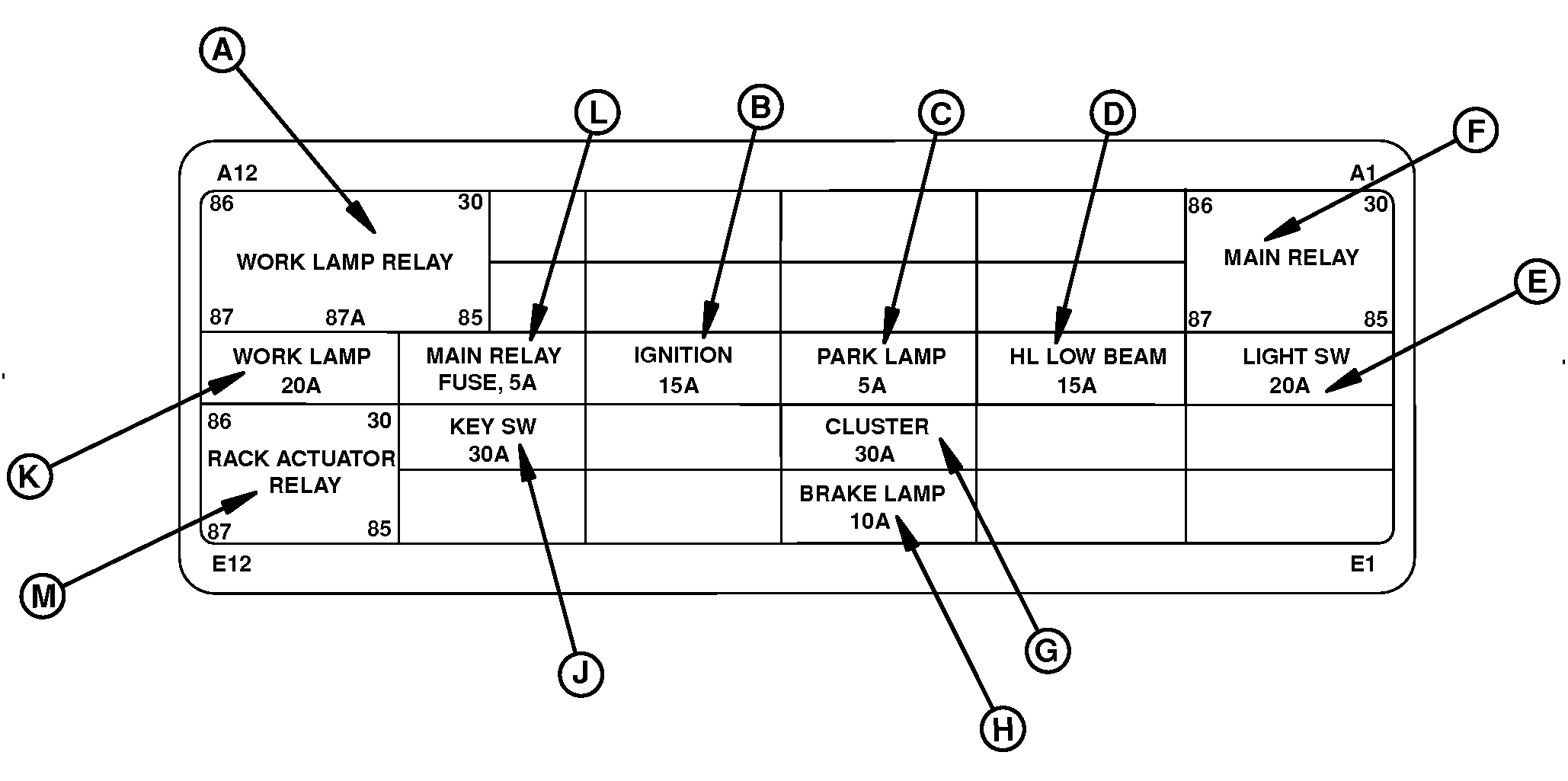

A - Work Lamp Relay

B - Ignition Fuse 15A

C - Park Lamp Fuse 5A

D - HL Low Beam Fuse 15A

E - Light Switch 20A

F - Main Relay

G - Cluster 30A

H - Brake Lamp Fuse 10A

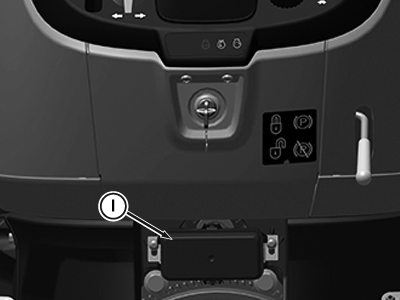

I - Fuse Box

J - Key Switch Fuse 30A

K - Work Lamp Fuse 20A

L - Main Relay Fuse 5A

M - Rack Actuator Relay

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, contact your John Deere dealer.
