Check Cooling System for Leaks

1.

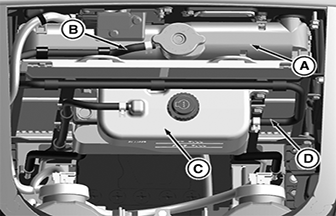

   PY45779-UN-12JUL18

   A - Radiator

   B - Hose, Radiator

   C - Coolant Recovery Tank

   D - Hose, Coolant Recovery Tank

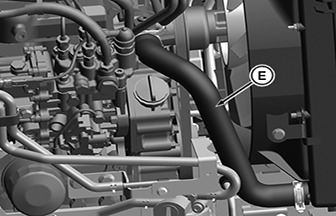

   PY45777-UN-12JUL18

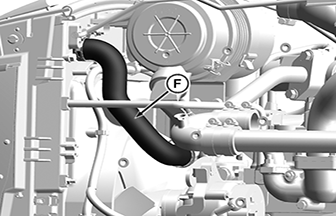

   PY45778-UN-12JUL18

   E - Radiator Hose

   F - Radiator Hose

   Check around base of radiator (A) for pinholes, cracks or any sign of coolant leakage.

---




2. Inspect coolant recovery tank (C) for holes, cracks or any sign of coolant leakage.

3. Check the condition of radiator hoses (E and F) and coolant recovery tank hoses (D) for cracks, abrasions, cuts or other damage. Replace as necessary.

4. Check for leaks or loose connections.

   NOTE: If any problem is noted during the visual check, the necessary corrective action must be taken before you operate the engine.
