Connect Starter Wiring

IMPORTANT: Disconnect battery negative (ground) cable before servicing any part of the electrical system. Make all other connections before connecting ground cable.

Connect ring terminal on battery positive cable (B) to starter motor (A) and front wiring harness single pole connector to starter solenoid.

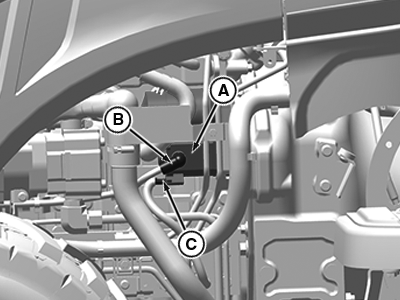

PY47366-UN-24AUG17

A - Starter Motor

B - Positive Battery Cable

C - Solenoid Terminal
