Lubricate Front Axle Grease Fitting Locations

PY23260
PY23260-UN-09JUL15

.

PY22058
PY22058-UN-09JUL15

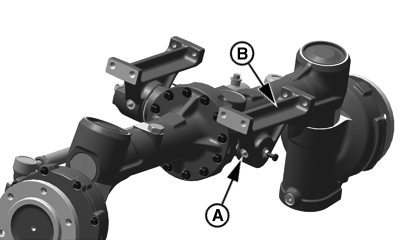

Light-Duty Front Trunnion, MFWD Axle

PY22059
PY22059-UN-09JUL15

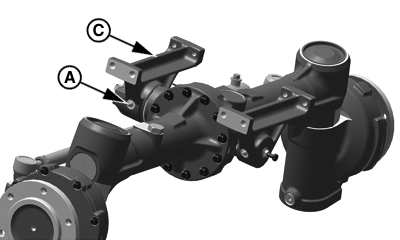

Light-Duty Rear Trunnion, MFWD Axle

A - Greasing Point

B - Front Trunnion

C - Rear Trunnion

  1. Park the tractor on a level surface. Engage park brake.

  2. Apply several shots of multipurpose grease to the greasing point (A) on front and rear trunnion (B and C) respectively.

HY01057,00002DD-19-20180112
