Parked Exhaust Filter Cleaning

IMPORTANT: If operator disregards indicators and continues to operate machine without allowing an automatic cleaning, engine performance is reduced. A parked exhaust filter cleaning procedure must be performed.

H94831-UN-13OCT09

Service Alert Indicator

H94828-UN-13OCT09

Exhaust Filter Cleaning Indicator

The following occurs when exhaust filter becomes restricted:

• Service alert and exhaust filter cleaning indicators (on dash) are illuminated.
• Engine power is reduced.
• Information display will show “Parked Regen Required”

At this time, a parked exhaust filter cleaning is required.

Before a parked exhaust filter cleaning can be completed, the following criteria must be met:

• Set engine rpm at low idle.
• Coolant temperature must be above 60 deg°C (140°F).
• Transmission must be in neutral.
• Zero ground speed commanded.
• Park brake must be engaged.
• PTO must be turned off.

1. IMPORTANT: Select a suitable space to park the machine and lower all implements to the ground.

   No other machine functions can be used while exhaust filter cleaning is taking place with the machine parked. Excluded from this are functions that are required for an emergency shutdown of the machine.

   Make sure the low fuel indicator is not displayed and there is at least 1/8 of a tank of fuel before starting regeneration.

   Only stop engine if absolutely necessary due to heat build up in the engine compartment.


   APY35473-UN-03JUN20


   LV29918-UN-22JAN18

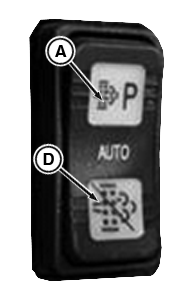

   A - Parked Cleaning Position

   B - Exhaust Filter Temperature Indicator

   C - Information Display

   D - Filter Cleaning Disable Switch

   Press and hold the exhaust filter cleaning switch (A) in the parked cleaning position for 5 seconds; LED above the switch will start blinking if all conditions are met. Release, then push for another 3 seconds; the icon should remain lit. The following prompt messages may appear on the information display (C) before the filter cleaning will start:

   NOTE: If cancellation of a parked exhaust filter cleaning process is necessary, push filter cleaning disable switch (D).

   Parked regeneration is aborted if any messages appear. The process must be repeated by holding the Parked Regen button for 5 seconds.

   Exhaust Filter Messages
   Apply Park Brake	Engage the park brake.
   Filter Hours	Not enough time has elapsed since last regeneration.
   Engine Cold	The engine is too cold. The engine must be at operating temperature before a parked regeneration is performed.
   Shift To Neutral	Shift the transmission range selector to neutral.
   Shut PTO Off	Turn off the PTO.
   Reduce Engine Speed	Reduce engine speed to low idle.

---




2. During the parked cleaning process, the high exhaust temperature indicator (B) and the LED above the Exhaust Filter Cleaning Switch (A) illuminate.

3. Soot Level will be displayed and engine speed will slowly increase.

4. When the parked cleaning process is complete, the LED above the Exhaust Filter Cleaning Switch turns off. High exhaust temperature indicator (B) remains on for 30 seconds after completion and the engine speed returns to low idle.

5. NOTE: If not returning machine to operation, allow engine time to return to normal operating temperature before stopping engine.

   After high exhaust temperature indicator (B) turns off, the system defaults to automatic exhaust filter cleaning mode and machine can be operated as normal.
