Position Center Link

1.

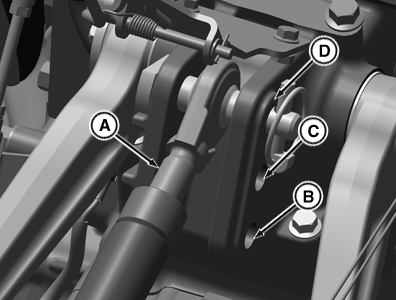

   PY49472-UN-16MAY18

   Center Link

   A - Center Link

   B - Bottom Hole

   C - Middle Hole

   D - Top Hole


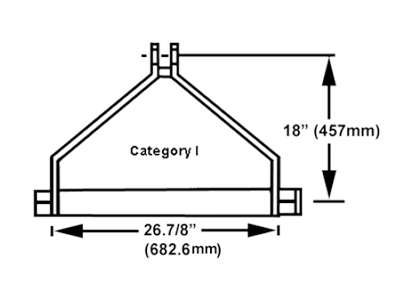

   PY23270-UN-06FEB15

   Implement (Mast Height)

   Selection of hole (B,C or D) will help in adjustment of implement mast inclination as per application requirement.

---




2. During transport, if maximum ground clearance is required, then the bottom hole "B" should be used along with shortest length of the center link.

Standard position is Middle Hole (C).

NOTE: Implements with Category I, mast height 457 mm (18 in.) will use the upper two holes.
