Service Advisor Connector
APY08229-UN-02JUL18
APY08230-UN-02JUL18

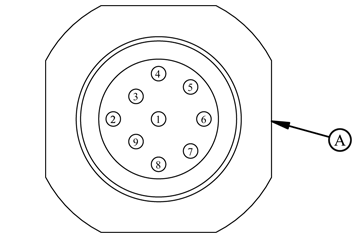

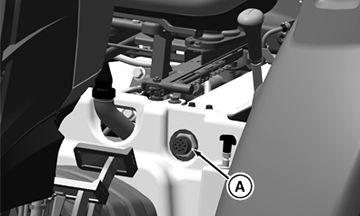

A - Service Advisor Connector
NOTE: Matching plug is available at your John Deere dealer.
|
Terminal |
Function |
Wire Color |
|---|---|---|
|
1 |
Ground |
Black |
|
2 |
12 V Input |
Red |
|
3 |
Tractor CAN Hi |
Yellow |
|
4 |
Tractor CAN Lo |
Green |
|
5 |
— |
— |
|
6 |
— |
— |
|
7 |
— |
— |
|
8 |
— |
— |
|
9 |
— |
— |
|
MD36154,0000313-19-20180702 |
