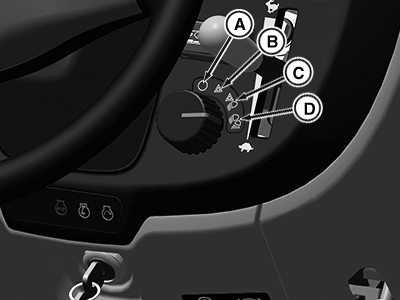

Light Switch Positions

APY02420-UN-22DEC17

A - Zero - Lights Off

B - Hazard/Warninig Lights

C - Low Beam Headlights, Hazard/Warning Lights

D - Low Beam Headlights, Work Lamp

CAUTION: Avoid injury! DO NOT operate on roads with the light switch in the field (work lamp) position. Rear work lights can blind or confuse operators of oncoming vehicles.

NOTE: High beam option is not available.

Tractor light switch has four positions:

A—Turns off all lights.

B —Turns on hazard/warning lights.

C —Turns on the low beam headlights and hazard/warning lights.

D —Turns on the low beam headlights and work lamp.
