Set Position Control Lever Stop

  1. NOTE: Position control lever stop is used when operating depth or height needs to be repeated.

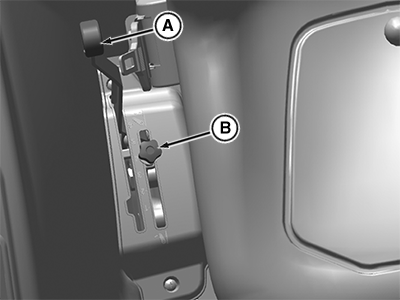

    PY45751
    PY45751-UN-21AUG17

    A - Position Control Lever

    B - Position Control Lever Stop

    Operate implement for a few minutes to determine proper depth or height.


  2. Raise position control lever (A), and slide against the position control lever (B). Hand-tighten the lever stop by rotating clockwise direction.

  3. Rockshaft will now lower to same position each time control lever is pushed forward to the stop.

MD36154,0000317-19-20180212
