Use Position Control

PY45750-UN-21AUG17

PY47329-UN-18AUG17

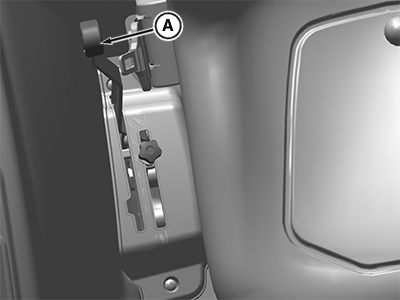

A - Position Control Lever

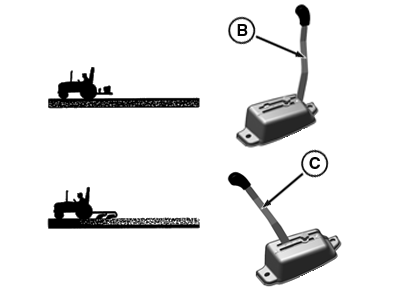

B - Position Control Lever in Rearward Position

C - Position Control Lever in Desired Depth Position

NOTE: The implement rate-of-drop control knob should be in center position of raising/lowering hitch.

Use position control lever (A) to control hitch movement and depth. Position control should be used for the following applications:

For transporting of implements and at the end of field turn-around, place position control lever in fully rearward position (B) while transporting.

For constant depth of implements on level terrain and for non- ground engaging implements such as rotary tiller, place position control lever at desired depth position (C).
