Adjust Rockshaft Rate-of-Drop and Implement Lock

CAUTION: Excessive rate-of-drop may cause damage or injury. Fully lowering implement should require at least two seconds.

PY47325-UN-18AUG17

Rate-of-Drop / Implement Lock

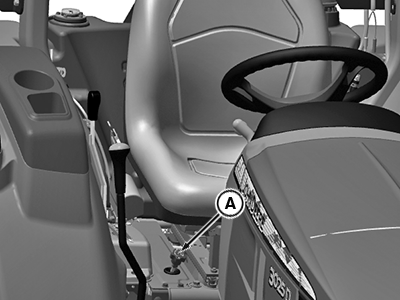

A - Rate-of-Drop Knob / Implement Lock

Rockshaft drops faster when a heavy implement is attached. Adjust rate-of-drop knob (A) so that it is slow enough to be safe and prevent implement damage.

Turn rate-of-drop knob (A), located under the seat, clockwise to slow rockshaft drop.

Turn knob anti-clockwise to increase rate-of-drop.

Turn the rate-of-drop knob completely until stop is reached; this will result in implement lock.

NOTE: Use implement lock while transporting implement.
