A - Implement
B - Implement Hitch Pins

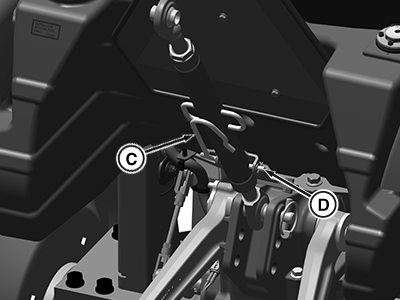

C - Center Link Support
D - Latch
E - Position Control Lever

PY23301-UN-24FEB15
F - R-Pin
G - Turnbuckle
H - Threaded Rod, Right-hand
I - Threaded Rod, Left hand
Be sure that drawbar does not interfere. If necessary, move
the drawbar ahead or remove it. Check for any other potential interference.
NOTE: A typical hitch & implement is illustrated.
-

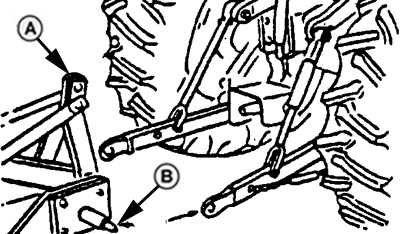

Back tractor up to implement (A) so hitch points (B) align.
Place transmission in NEUTRAL, stop the engine and engage park brake
before leaving the tractor seat.
-
Slip draft links over implement hitch pins (B), and retain with
quick-lock pins.
-
To rotate and remove the center link from the center link support
(C).
-
Attach center link to implement top mast.
-
Adjust center link and lift links as necessary. See Level the
Hitch in this section.
-
CAUTION: To avoid bodily injury or machine damage whenever an
implement, implement quick coupler or other attachment is connected
to the tractor 3-Point hitch, check full range of operation for interference,
binding, or PTO separation.

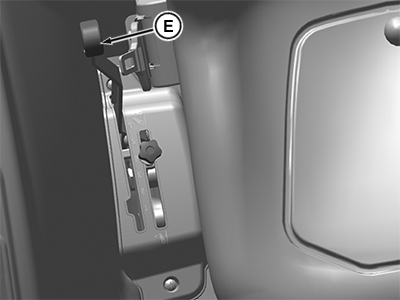

Using position control lever (E) to lower or raise the implement
slowly and check for any point of interference.
IMPORTANT: DO NOT shorten chains so short that it does not allow
the hitch to rise fully. If chain prevents hitch from rising, this
can cause the chain to break. The hydraulic valve opens and may cause
excessive oil heating, or damage to pump or equipment.
NOTE: Use spring or rubber strap to keep draft links out of
rear tires when draft links are not attached to implement.

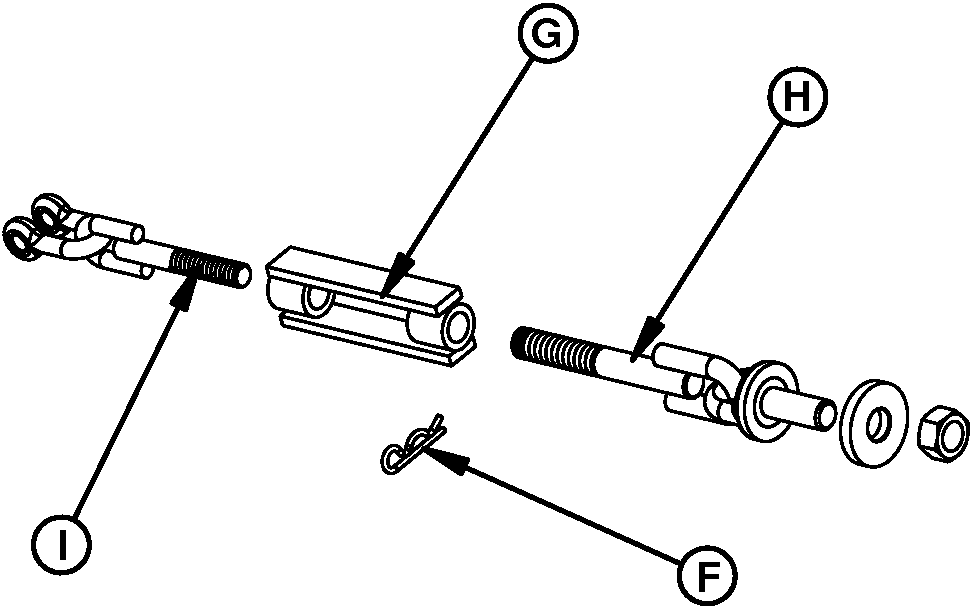

Implement side sway should be adjusted when the rockshaft is
raised for transport. Remove R-Pin (F) from the threaded rod (H) prior
to adjustment. Rotate the turnbuckle (G) to get the right length and
then reinstall the R-pin (F) to lock the adjusted length.
