Observe Engine Operation Closely

IMPORTANT: The engine is ready for normal operation. Be extra cautious during the first 100 hours, until you become thoroughly familiar with the sound and feel of your new tractor. Stay extra attentive and alert.

1.

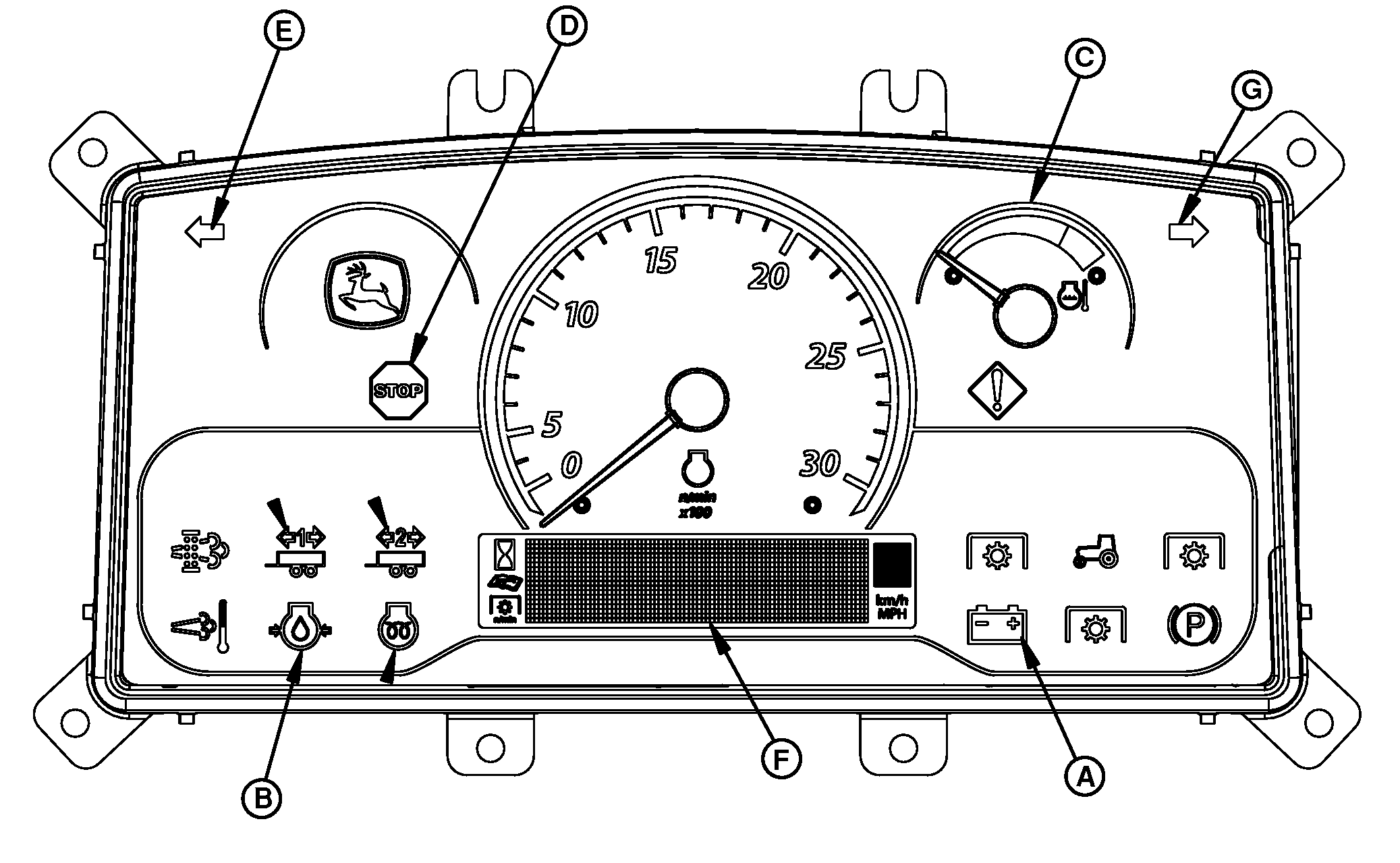

   PY49482-UN-03MAY18

   A - Alternator/Battery Charging Light

   B - Engine Oil Pressure Light

   C - Coolant Temperature Gauge

   D - Stop Indicator

   E - Warning Indicator - Turn Left

   F - Information Display

   G - Warning Indicator - Turn Right

   Warm up tractor carefully. Check battery charge indicator (A), engine oil pressure indicator (B), coolant temperature gauge (C), stop indicator (D), warning indicators (E and G), and information display (F).

---




2. Avoid unnecessary engine idling.

3. Check fluid levels of engine coolant, transmission/hydraulic system, and mechanical front wheel drive (if equipped) frequently. Check fluid levels for any fluid leakages.

   NOTE: If engine oil must be added, use only lubricants meeting specifications given in the Fuels, Lubricants, and Coolant section.
