Observe Drawbar Load Limitations

APY08245-UN-10JUL18

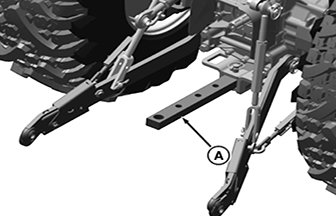

A - Drawbar

IMPORTANT: Certain heavy equipment, such as a loaded single-axle trailer, can place excessive strain on drawbar (A). Strain increases with speed and rough ground.

Static vertical load on drawbar (A) must not exceed 500 kg (1102 lb).

Drive slowly with heavy loads.

Item	Measurement	Specification
Drawbar Static Vertical Load	Capacity	500 kg (1102 lb) Maximum
