Fuse and Relay Size and Function (For 3035D and 3043D)

APY02426-UN-18JUL18

APY01405-UN-29DEC17

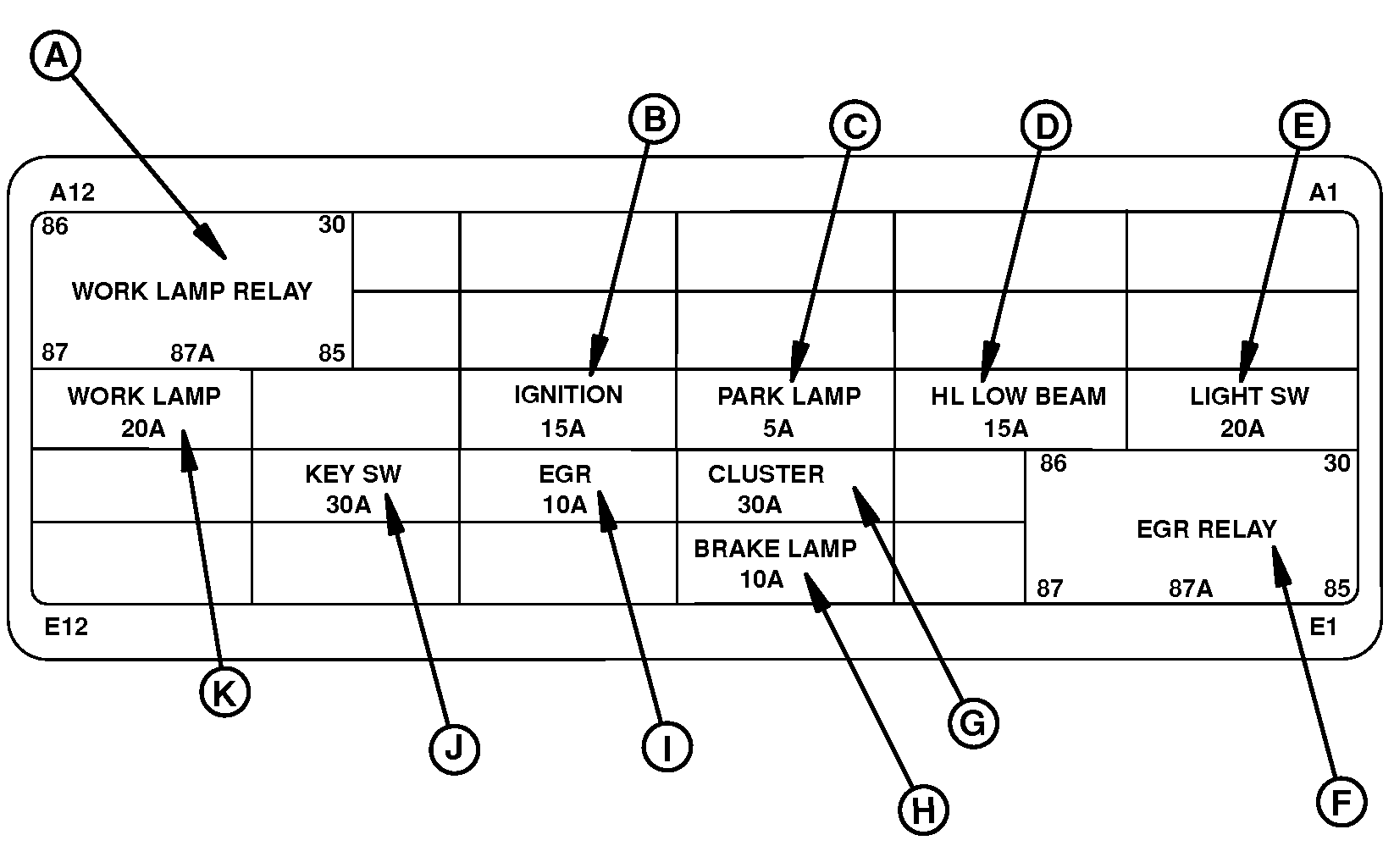

A - Work Lamp Relay

B - Ignition Fuse 15A

C - Park Lamp Fuse 5A

D - HL Low Beam Fuse 15A

E - Light Switch 20A

F - EGR Relay

G - Cluster 30A

H - Brake Lamp Fuse 10A

I - EGR Fuse 10A

J - Key Switch Fuse 30A

K - Work Lamp Fuse 20A

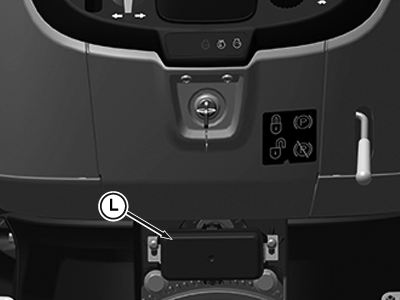

L - Fuse Box

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, contact your John Deere dealer.
