Adjust Toe-In—MFWD Axle

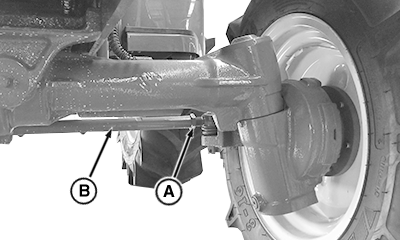

PY22406-UN-04MAR15

Light-Duty Powered Axle

A - Tie Rod Jam Nut

B - Tie Rod Tube

1. Loosen tie rod lock nut (A) on both ball joints.

2. Rotate tie rod tube (B) clockwise or counterclockwise to adjust the amount of toe-in. Adjust tie rod until the toe-in is set to 0—3 mm.

   - Rotating threaded rod in 1/2 turn increments equals 1.5 mm (1/16 in)

3. Tighten tie rod lock nut (A) to specification. Do not overtighten, it damages the tube.

   Item	Measurement	Specification
   Tie Rod Jam Nut (light-duty front axle)	Torque	115 - 130 N·m (85 - 96 lb·ft)

4. Check toe-in setting. Repeat procedure if further adjustment is required.

Toe-In Value Chart
Make	Toe-In Value
Front Axle	0-3 mm
