Air Intake System Components

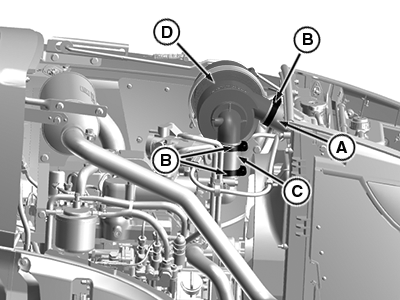

For 3025D

PY47369-UN-24AUG17

A - Air Inlet Hose

B - Clamp (3 used)

C - Hose

D - Air Filter Assembly

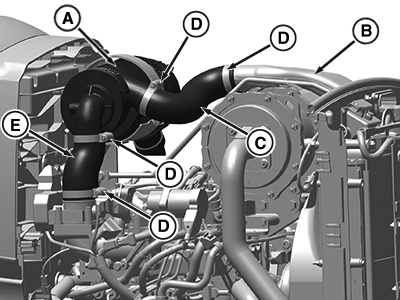

For 3035D

APY07646-UN-05JUN18

A - Air Filter Assembly

B - Air Intake Duct

C - Hose

D - Clamp (4 used)

E - Hose

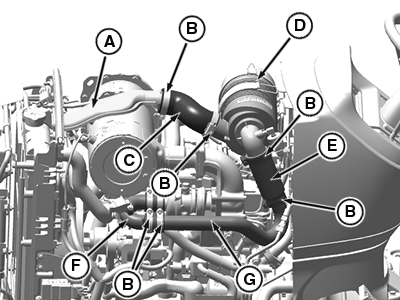

For 3043D

PY47342-UN-24AUG17

A - Air Intake Duct

B - Clamp (4 used)

C - Hose

D - Air Filter Assembly

E - Hose

F - Air Duct to Turbocharger Input

G - Pipe
