Selecting Front Tire Rolling Direction

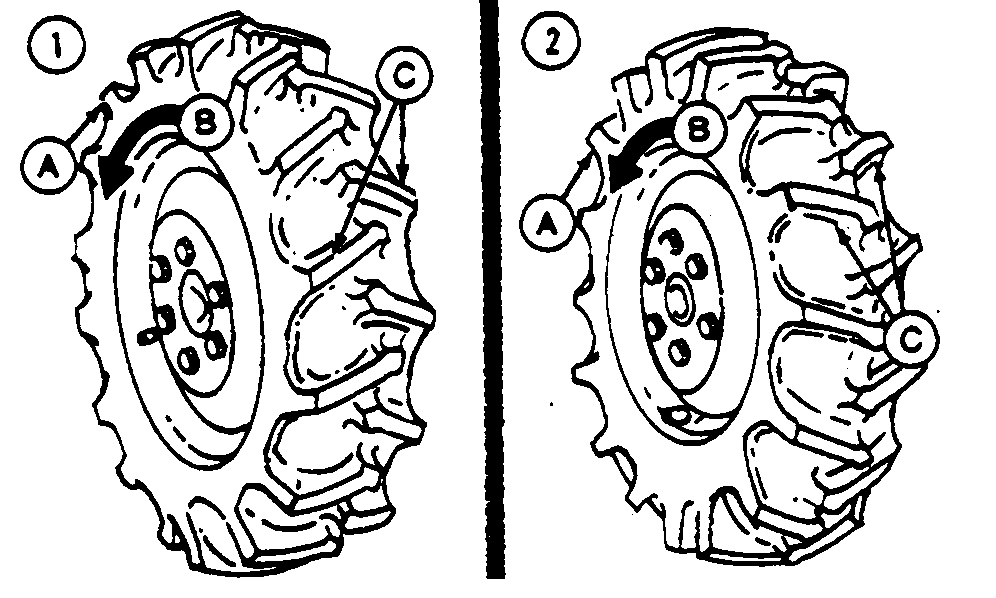

(1)-Under most conditions, front tires (A) should be mounted with the direction of tire lugs (C) the same as the tire rolling direction (B).

(2)-If tractor is mainly used for loader operations, lug direction may be reversed on the MFWD axle for improved tire wear.

A-Front Tire (Viewed from Rear)
B-Rolling Direction of Tire
C-Tire Lugs

MX,WTIP,HA2 -19-07DEC06-1/1
