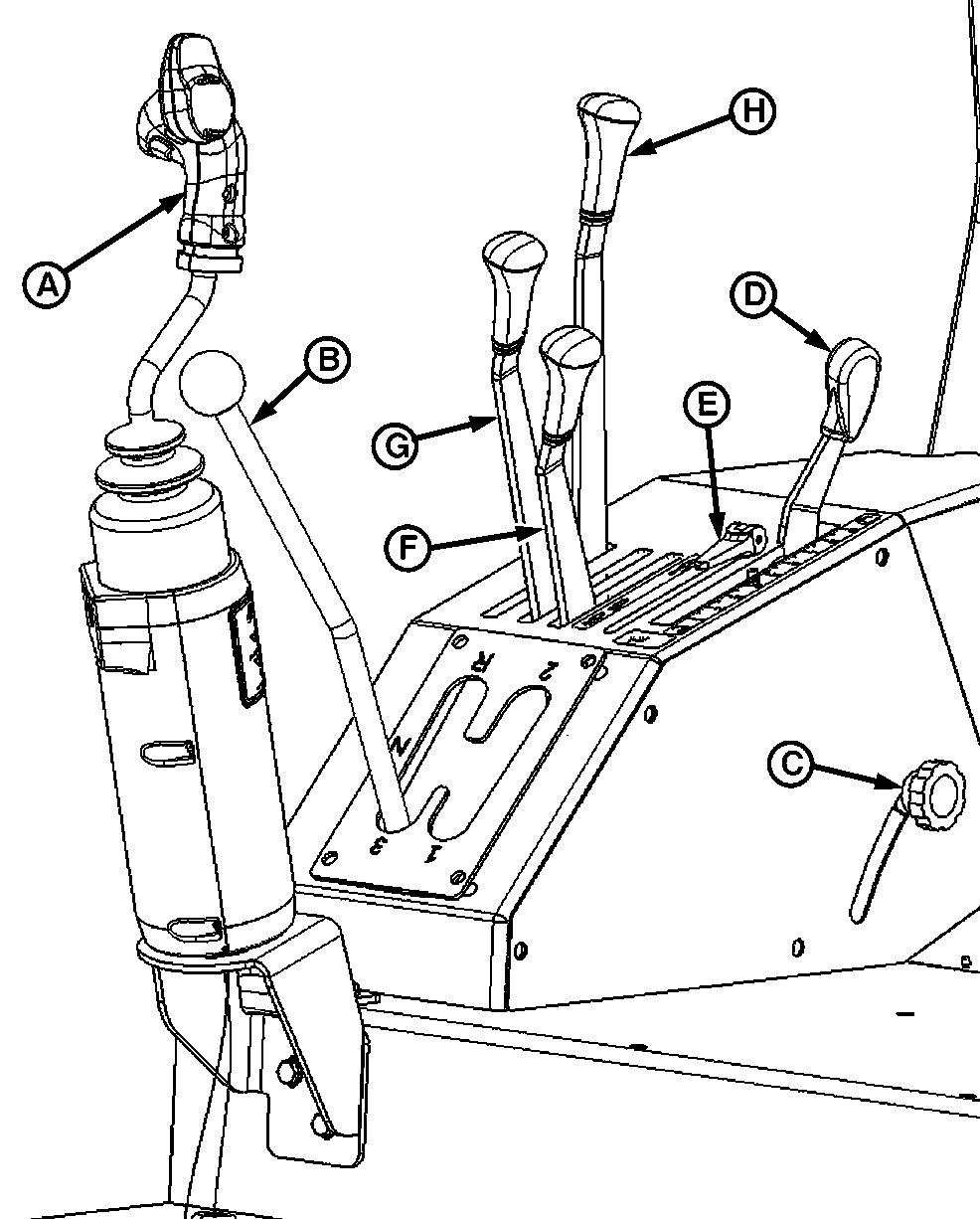

Tractor Controls-Right-Hand Panel
A-Multi-Function Control Lever (If Equipped)
B-Gear Shift Lever
C-Rockshaft Draft Control Knob
D-Rockshaft Position Control Lever
E-Position Control Stop Knob
F-SCV I Control Lever
G-SCV II Control Lever (If Equipped)
H-SCV III Control Lever (If Equipped)

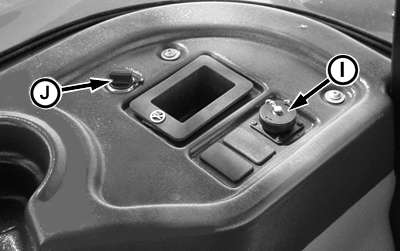

I-12-Volt Accessory Electrical Outlet (Cab Only)
J-12-Volt Power Outlet (Cab Tractor Shown)

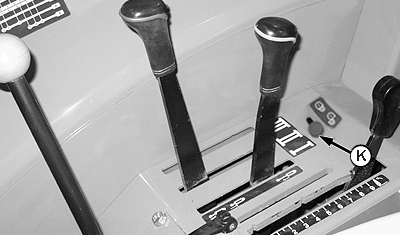

K-SCV Lockout1
|
