Using Headlights

CAUTION: Never use flood lights when driving on roads. Dim headlights for oncoming traffic. Bright lights could blind or confuse other drivers.

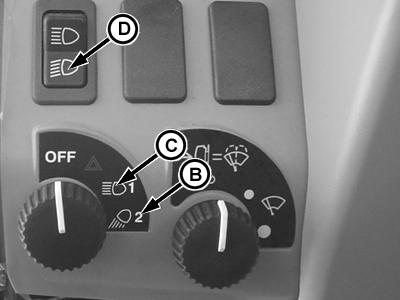

Dual-beam headlights (A) are used for highway driving, day or night. They are turned on in position 1 (C) or 2 (B) with the light switch.

Always dim headlights by moving high/low beam switch (D) to low beam position when meeting another vehicle.

Keep headlights adjusted properly. (See ADJUST HEADLIGHTS in Maintenance-Electrical System section.)

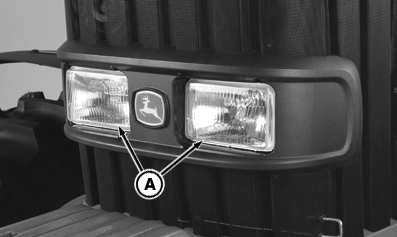

A-Headlights
B-Field Lights
C-Road Lights
D-High/Low Beam Switch

NS43404,0000431 -19-16OCT08-1/1
