Using Floodlights-Cab

CAUTION: When operating on a road, move light switch to either road lights position-1 (D) or low (dim) headlight position (E). Never use floodlights when transporting on roads. Clear, bright lights at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

NOTE: Front and rear flood lights adjust freely by hand.

Floodlights (A and B) are for field work only. Do NOT use when driving on public roads. Floodlights are on when switch is turned to field light position (C).

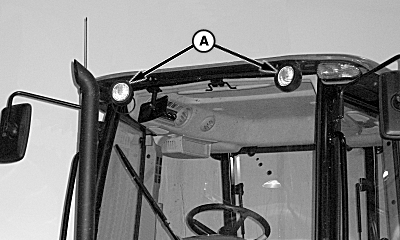

A-Front Floodlights

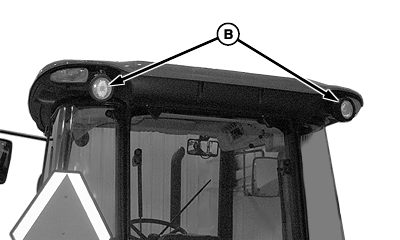

B-Rear Floodlights

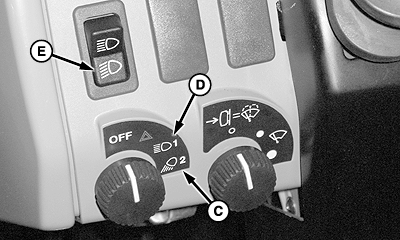

C-Field Lights-2
D-Road Lights-1
E-High/Low Beam Switch (Low position)

NS43404,0000437 -19-20JAN08-1/1
