Using Tail Lights/Brake Lights-Cab

Tail lights (A) are on when switch is turned to positions (B). Brake lights (A) are on when key is in run position and service brake is applied.

Be sure tail light lenses are clean before driving on a road, so other drivers can see them easily.

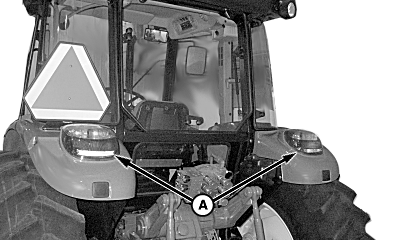

A-Tail Lights/Brake Lights (Red)

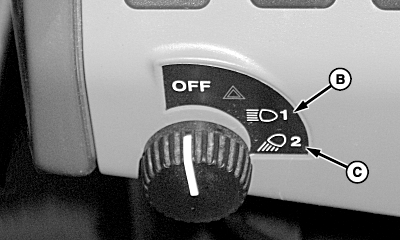

B-Road Lights-1
C-Field Lights-2

NS43404,0000439 -19-21NOV08-1/1
