Check Instruments After Starting (PowrReverser™ and Wet Clutch Tractors)

IMPORTANT: If coolant temperature gauge (A) goes into the red zone, or either oil pressure or charging system indicators (B or C) remain on, stop engine and determine the cause.


A-Coolant Temperature Gauge
B-Engine Information Indicator
C-Charging System Indicator

P14859

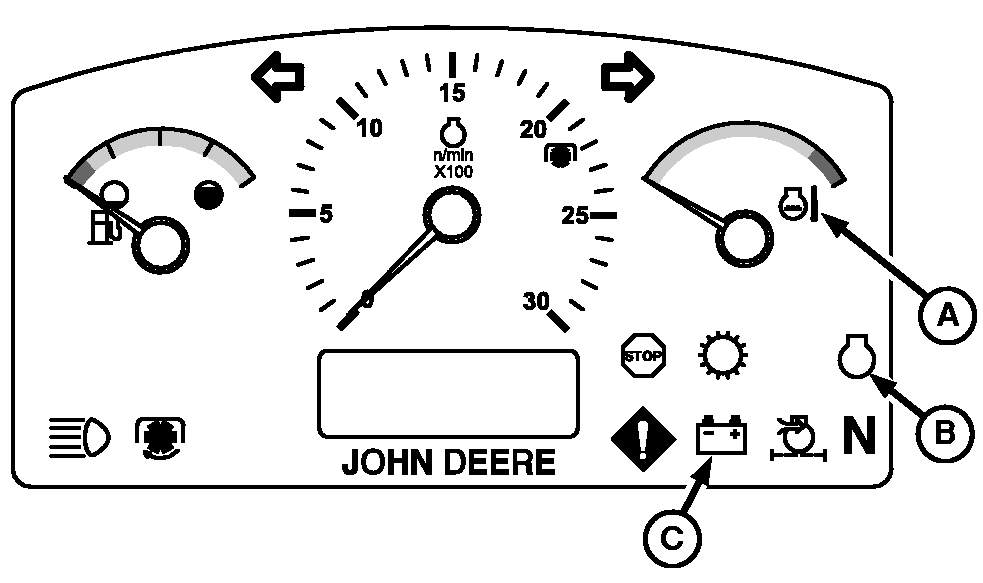

Instrument Panel PowerReverser/Wet Clutch Tractors

NS43404,000045D -19-17APR08-1/1
