Changing Engine Speed

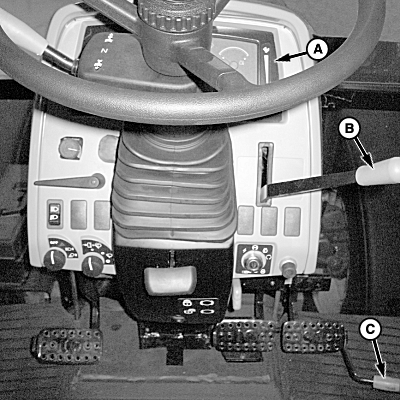

To increase or decrease engine speed, use hand throttle (B). Engine will maintain set speed until hand throttle is moved again. Maximum speed is attained with lever all the way up, and minimum speed with lever all the way down, as indicated by the fast/slow indicator (A) on instrument panel.

To temporarily increase engine speed, use foot throttle (C). Engine speed will return to prior speed as soon as foot throttle lever is released.

A-Fast/Slow Indicator
B-Hand Throttle
C-Foot Throttle

NS43404,0000463 -19-30JAN08-1/1
