Working With Speed and Hour Meters

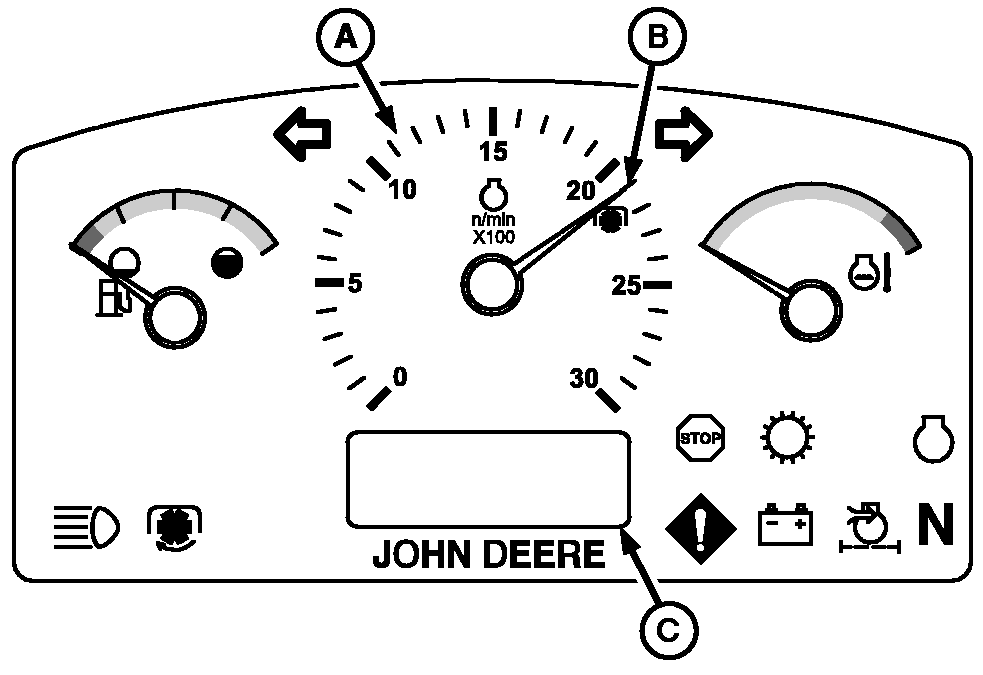

Tachometer (A) shows engine revolutions per minute, read in hundreds.

For 540 or 1000 rpm PTO, increase engine speed until tachometer needle is aligned with 2100 rpm mark (B).

Hour meter (C) shows hours of engine operation in full hours and tenths.

A-Tachometer
B-2100 rpm Mark
C-Hour Meter

NS43404,0000468 -19-25MAR08-1/1
