Driving on Public Roads
Observe the following precautions when driving tractor on roads: 1. Ballast tractor correctly.2. Cab: Clean windows and adjust rear-view mirrors. 3. Use foot throttle instead of hand throttle. |
CAUTION:
When transporting on a public road or highway, use accessory lights and devices for adequate warning to operators of other vehicles. Check local governmental regulations. Various safety devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.
NS43404,000046D -19-07APR08-1/3 |
|

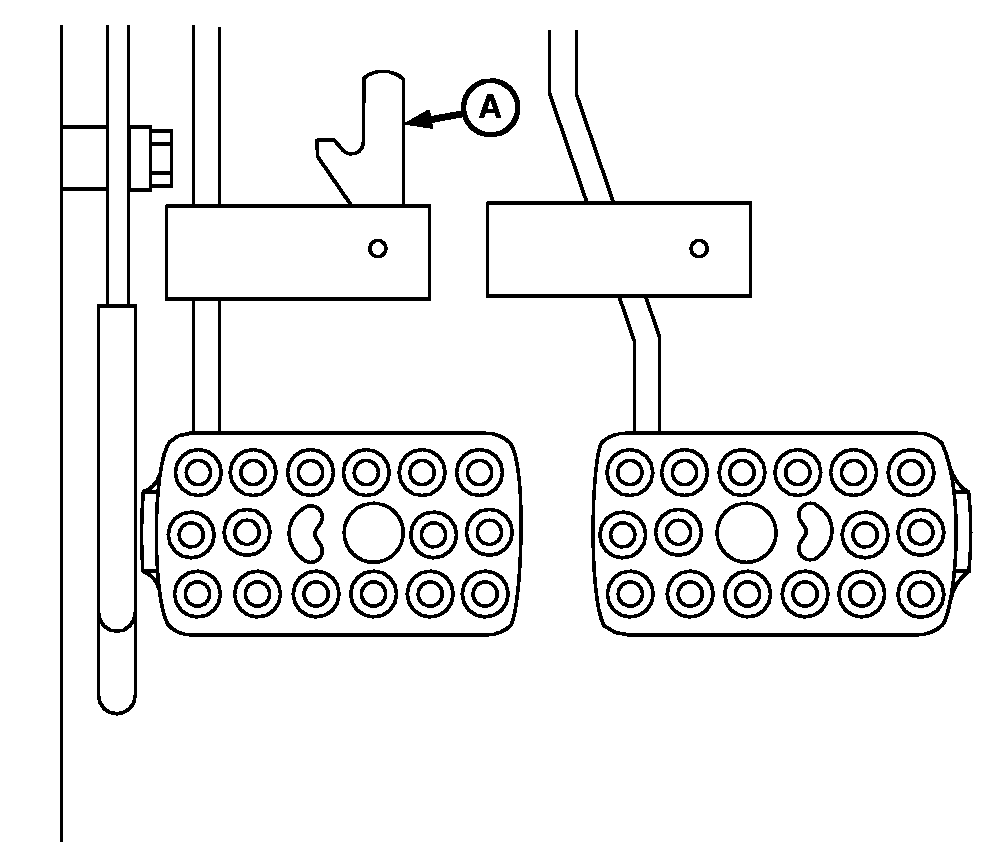

IMPORTANT: To prevent unnecessary wear, never "ride" the brakes by resting a foot on the pedals. 4. Couple brake pedals together using brake pedal locking bar (A). Avoid hard application of brakes. Reduce speed if towed load weighs more than the tractor and is not equipped with brakes. (Consult implement operator's manual for recommended transport speeds.) Use additional caution when transporting towed loads under adverse surface conditions and when turning or braking on inclines. Be sure wheel tread is adjusted wide to provide maximum stability. |
|
NS43404,000046D -19-07APR08-2/3 |
|
5.

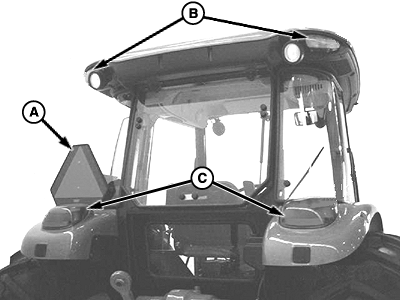

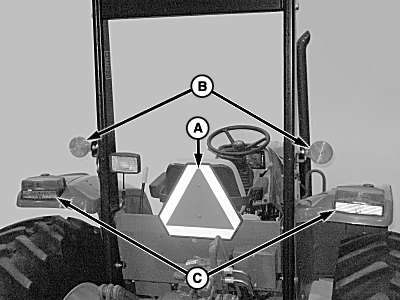

Check local laws and regulations for lighting requirements. Clean Slow Moving Vehicle (SMV) emblem (A), warning lights (B) and tail lights/brake lights (C). If towed or rear-mounted equipment obstructs view of safety devices, install SMV emblem and warning lights on equipment. (See your John Deere dealer.)
A seven-terminal outlet at rear of tractor supplies power to warning lights on towed or rear-mounted equipment. (See description of outlet in Lights section.) 6. MFWD (if equipped): To reduce tire wear, disengage front wheel drive. 7. Loader Cylinders (if equipped): Engage transport lock to eliminate possibility of loader movement during transport by inadvertently bumping the multi-function control lever. 8. Rear Hitch: Lock hitch in transport position to eliminate the possibility of lowering an implement during transport by inadvertently bumping the raise/lower lever. 9. Use turn signal lever (D) when turning. Return lever to center position after turning. 10. Turn light switch to position (E). 11. Move switch (F) to low beam position (down) when meeting another vehicle. Never use floodlights or any lights which could blind or confuse other drivers. 12. Drive slowly to maintain safe control. Before descending a hill, shift to a gear low enough to control speed without using brakes. Slow down for rough ground and sharp turns, especially when transporting heavy, rear-mounted equipment.
|
|
NS43404,000046D -19-07APR08-3/3 |
