Adjusting Rockshaft Rate-of-Drop

CAUTION: Excessive rate-of-drop may cause damage to equipment or injury to machine operator. Fully lowering implement should require at least two seconds.

Rockshaft drops faster when a heavy implement is attached. Adjust rate-of-drop knob (A) so that it is slow enough to be safe and prevent implement damage.

Adjust rockshaft rate-of-drop. Turn knob:

• Clockwise-Slow rate-of-drop
• Counterclockwise-Fast rate-of-drop

Adjust rockshaft position:

• Lock-Turn knob clockwise to the stop
• Unlock-Turn knob counterclockwise and readjust rate-of-drop

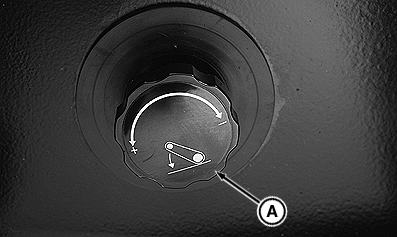

A-Rockshaft Rate-of-Drop Knob
