Attaching Implement with Telescoping Draft Links (If Equipped)

1. Position tractor in line with implement hitch pins. Back tractor up close to implement. Place gear shift lever or PowrReverser™ lever (if equipped) in NEUTRAL and set parking brake.

2. Pull hand throttle all the way down and allow engine to idle for 1-2 minutes, then turn engine off.

3. Pull up knob (B) and pull out draft link end (A). Slip draft link end over implement hitch pin and retain with quick-lock pin. Repeat procedure on opposite side.

4. Raise or lower each draft link body (C) to align it with link end.

5. Slowly back up tractor to lock link ends into place.

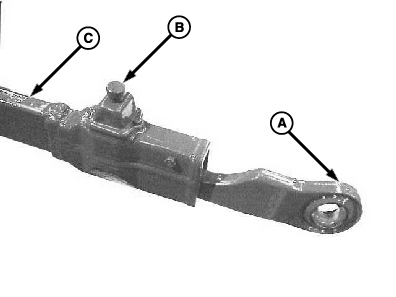

P9663


A-Draft Link End
B-Release Knob
C-Draft Link Body

NS43404,0000480 -19-07APR08-1/1
