Adjusting Drawbar Length

Hole (A): SHORT position

Hole (B): EXTENDED position

1. Loosen and remove drawbar retaining pin and nut (C).

2. Slide drawbar forward or rearward to desired position.

3. Align holes and install retaining pin and nut. Tighten to specifications.

Specification

Drawbar Retaining Pin Nut -Torque 410 N·m (300 lb-ft)

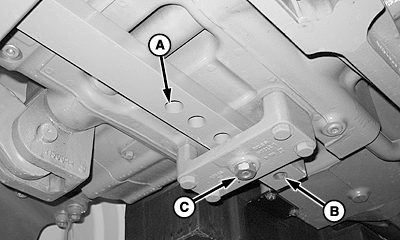

P15232


A-Hole, RETRACTED (short) Drawbar Position
B-Hole, EXTENDED Drawbar Position
C-Retaining Pin and Nut

NS43404,0000493 -19-06FEB08-1/1
