Operating Tractor PTO

NOTE: Engine will not start if PTO control lever is engaged.

1. Depress clutch pedal, start engine and push hand throttle lever (A) forward until engine tachometer indicates PTO rated speed of 2100 rpm.


A-Hand Throttle Lever

P14828

NS43404,0000499 -19-15APR08-1/2

NOTE: If operator is NOT on seat when PTO lever is ENGAGED:

  • OOS: Operator Alert Indicator (C) will turn ON

  • Cab: Audible alarm will sound

2. Move control lever (A) forward to engage PTO. Indicator light (B) will turn on when PTO is engaged.

causym CAUTION: Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting or cleaning PTO-driven implement.

To avoid entanglement with rotating shaft, always disengage PTO when not in use.

3. Pull control lever back to disengage PTO.

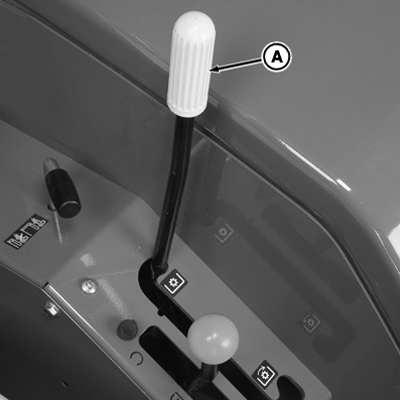

A-PTO Control Lever

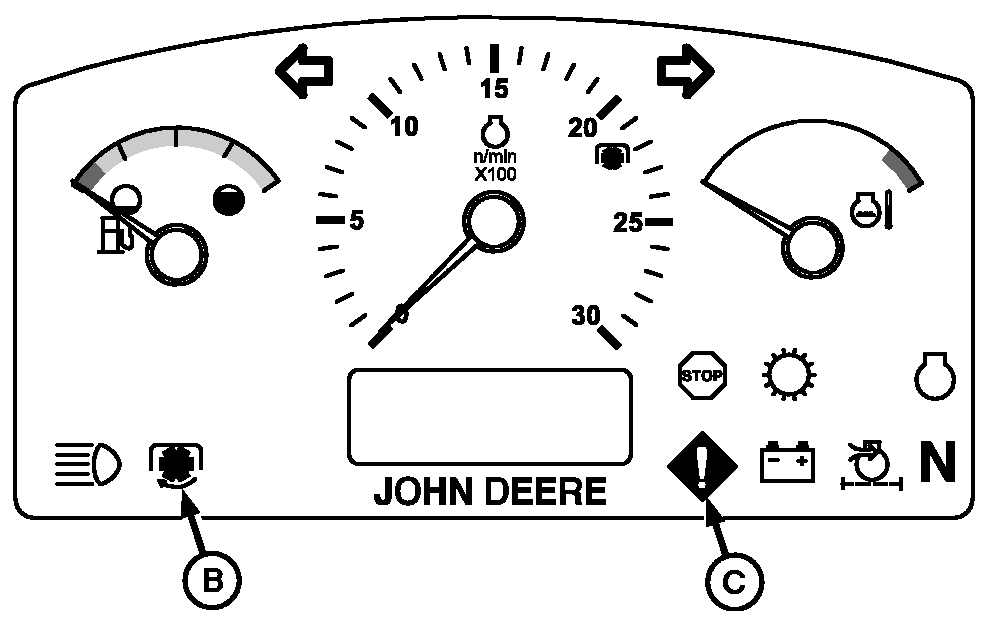

B-PTO Indicator Light
C-Operator Alert Indicator

P15334

Left-Side Panel

P15241

NS43404,0000499 -19-15APR08-2/2
