Ballasting Front End for Transport

causym CAUTION: Additional front ballast may be needed for transporting rear-mounted implements. When implement is raised, drive slowly over rough ground, regardless of how much ballast is used.

causym CAUTION: Weights are heavy. Use proper lifting equipment.

Front weight support (A) and additional weights can be installed.

Specification

Front Weight Support -Weight 84 kg (185 lb)
Additional Weight -Weight (each) 47 kg (104 lb)

1. Install desired number of weights (C) on front weight support, up to maximum allowed.

  • 18 Total Additional Weights

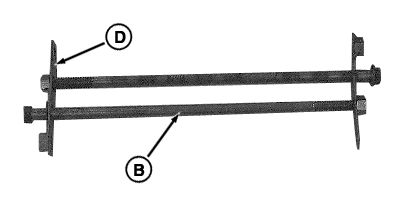

2. To hold weights in place, insert two retaining bolts (B) in opposite direction, one right-to-left, the other left-to-right. Place retainers (D) as shown. Tighten retaining bolts to specification.

Specification

Weight Retaining Bolt -Torque 230 N·m (170 lb-ft)

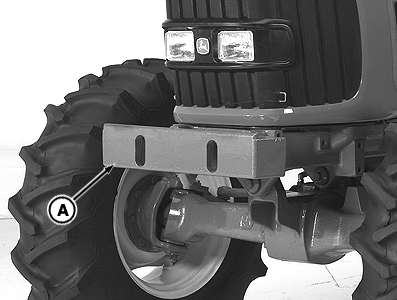

A-Front Weight Support
B-Retaining Bolt (2 Used)

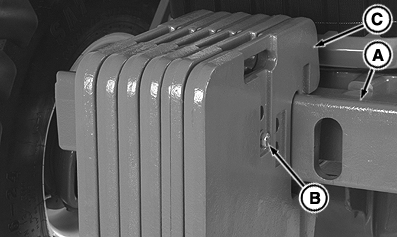

C-Additional Weights
D-Retainers and Nuts (2 Used)

P15327
P15328
P15324

NS43404,00004A2 -19-28MAR08-1/1
