Tighten Bolts-Adjustable Front Axle

Specification

Adjustable Front Axle-Axle-to-Knee Bolts -Torque 480 N·m (350 lb-ft)
Adjustable Front Axle-Disk-to-Flange Bolts -Torque 250 N·m (185 lb-ft)

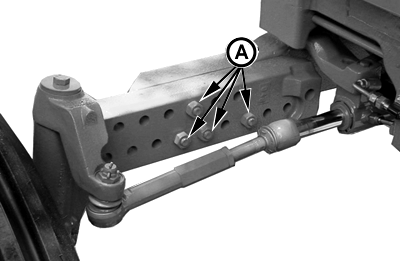

A-Axle-to-Knee Bolts (4 used each side)

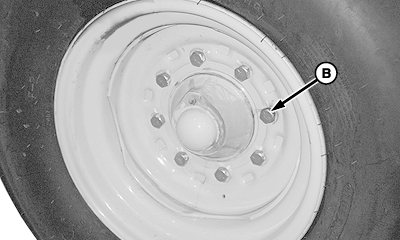

B-Wheel Disk-to-Axle Flange Bolts (8 used each side)

P9064A
P15210

NS43404,00004AF -19-26JAN08-1/1
