Tread Settings-Adjustable Front Axle (2WD Axle)

Each side of the front axle can be adjusted in increments of 51 mm (2 in.). Make sure adjustment is equal on both sides.

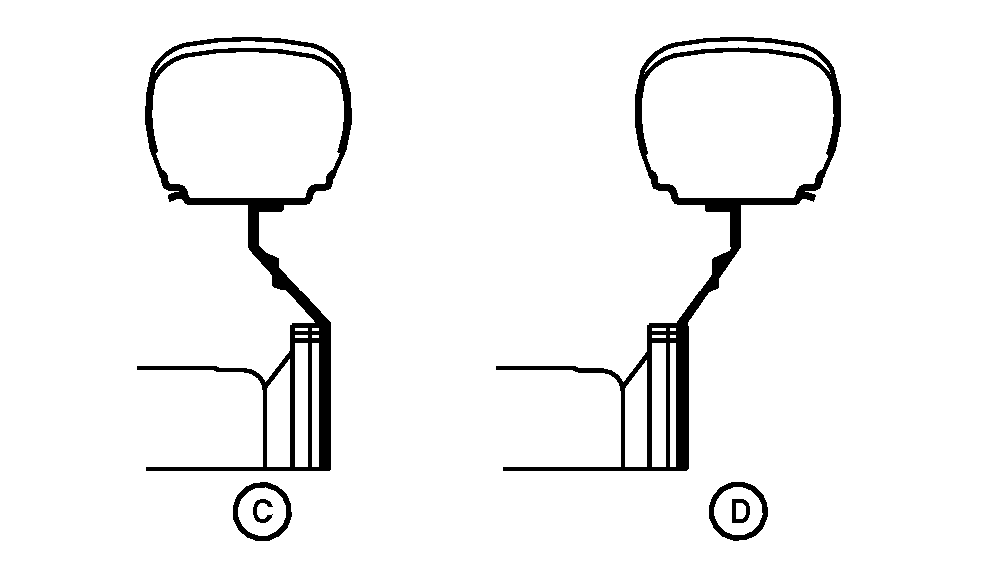

Wheel rim can be positioned as shown by (C) or (D) in the diagram. Positioning wheel rim as (D) provides an additional 44 mm (1.75 in.) tread width.

NOTE: Number 1 wheel position corresponds to axle adjustment at most inward location, resulting in narrowest tread.

The extension provided with the tractor is 102 mm (4 in.) long. Contact your John Deere dealer to order the optional 204 mm (8 in.) extension.

NOTE: Replace 102 mm (4 in.) extension with optional 204 mm (8 in.) extension. Do NOT use together.

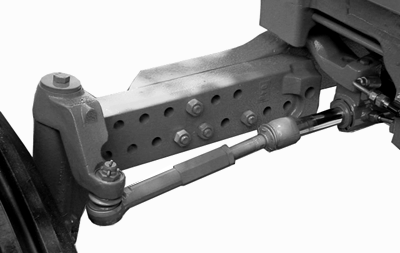

P9190A

Adjustable Front Axle with 102 mm (4 in.) Extension

LV1515

TREAD WIDTH
Centerline-to-Centerline
Tire Size 10.00-16
Wheel Position C D
1
Without Extension		 - 1533 mm (60.4 in.)
2
Without Extension		 1591 mm (62.7 in.) 1635 mm (64.4 in.)
3
With 102 mm (4 in.) Extension		 1693 mm (66.7 in.) 1737 mm (68.4 in.)
4
With 102 mm (4 in.) Extension		 1795 mm (70.7 in.) 1839 mm (72.4 in.)
5
With Optional 204 mm (8 in.) Extension		 1896 mm (74.7 in.) 1941 mm (76.4 in.)
6
With Optional 204 mm (8 in.) Extension		 1998 mm (78.7 in.) 2043 mm (80.4 in.)



NS43404,00004B2 -19-28MAR08-1/1
