Adjusting Toe-In-Adjustable Front Axle (2WD)

NOTE: Adjust toe-in equally at both tie-rods.

1. Loosen nut (A).

2. Remove cotter pin and slotted nut (B).

3. Remove tie-rod (C) from spindle assembly.

4. Turn tie-rod end to lengthen or shorten, as needed, to desired toe-in.

5. Install tie-rod end and slotted nut. Tighten nut to specification. Install cotter pin.

6. Tighten nut (A) to specification.

Specification

Nuts (A and B) -Torque 100 N·m (70 lb-ft)

7. Repeat on opposite side.

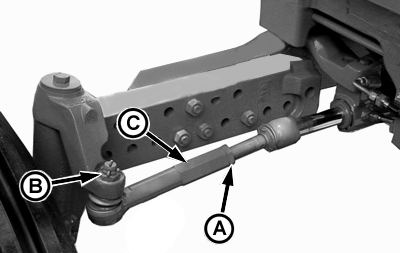

P12349B

Front Axle with 102 mm (4 in.) Extension


A-Nut
B-Slotted Nut
C-Tie-rod (with extension)

NS43404,00004B5 -19-28JAN08-1/1
