Tread Settings-Multi-Position Rear Wheels (Steel Disks)

Wheel tread on rear axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor. (This maneuver permits the change from disk dished-in to disk dished-out operations without disassembling the wheel.) When changing rear wheels from one side

to the other, the arrow on side wall of tire should point in the direction of forward rotation.

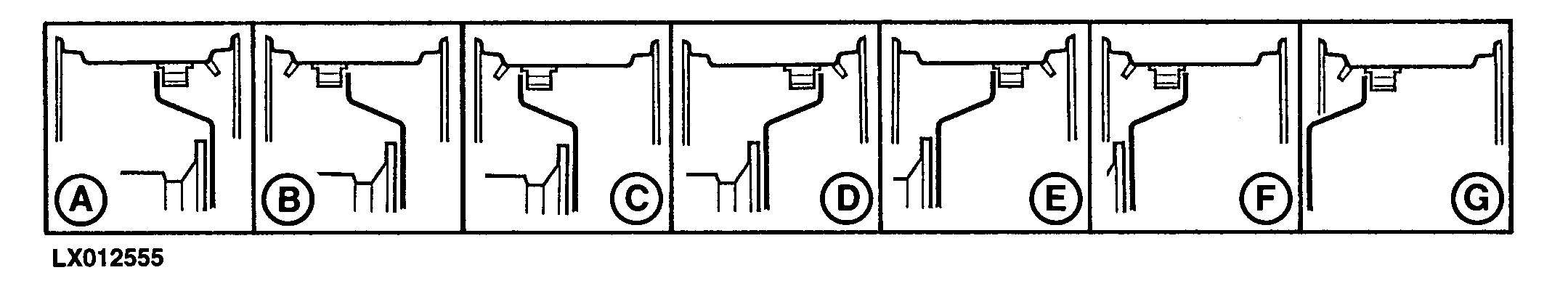

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the following diagrams.

A study of these diagrams before attempting to change tread settings will save unnecessary labor.

NS43404,00004B7 -19-28MAR08-1/2

LX012555

IMPORTANT: After setting wheel spacing, tighten rim-to-disk and disk-to-flange bolts. Drive tractor 100 m (109 yd) and tighten again.

Specification

Multi-Position Rear Wheels Rim-to-Disk Bolts (Steel Disk) -Torque 245 N·m (180 lb-ft)
Multi-Position Rear Wheels Disk-to-Flange Bolts (Steel Disk) -Torque 175 N·m (130 lb-ft)

TREAD WIDTH
Centerline-to-Centerline
Diagram Tire Sizes
  18.4-34 18.4-38
A N/A N/A
B 1512 mm (59.5 in.) 1512 mm (59.5 in.)
C 1612 mm (63.5 in.) 1612 mm (63.5 in.)
D 1716 mm (67.6 in.) 1716 mm (67.6 in.)
E 1812 mm (71.3 in.) 1812 mm (71.3 in.)
F 1916 mm (75.4 in.) 1916 mm (75.4 in.)
G 2016 mm (79.4 in.) 2016 mm (79.4 in.)



NS43404,00004B7 -19-28MAR08-2/2
