Steering Stop Adjustment (MFWD Axle)

IMPORTANT: Check for interference with front weights, tie rods, side frames and/or grille screen during full turn and full oscillation. A minimized turn radius may be obtained by utilizing a shorter stop position.

NOTE: Make sure dimension (C) is set to same value on right-and left-hand wheels.

Front wheel steering angle must be kept within certain limits according to tire size and tread width. Refer to one of the following tables to set adjustment dimension (C) by loosening lock nut (A) and turning adjusting screw (B). Tightening lock nut to specification.

Specification

Lock Nut -Torque

200 N·m

(150 lb-ft)

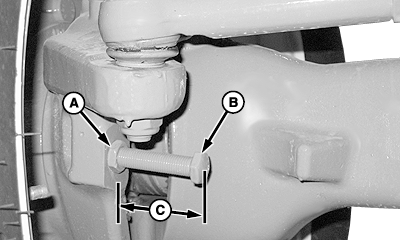

Left-Hand Side Shown

A-Lock Nut
B-Adjusting Screw
C-Dimension

Without Fenders
Rim and Wheel Disk Positions (See TREAD SETTING-MFWD AXLE in this section.)
	A	B	C	D	E	F	G
Tire Size	Dimension (C)	Dimension (C)	Dimension (C)	Dimension (C)	Dimension (C)	Dimension (C)	Dimension (C)
13.6-24	N/A	44 mm (1.8 in.)	25 mm (1 in.)	*	*	*	*
14.9-24	N/A	48 mm (1.9 in.)	36 mm (1.4 in.)	*	*	*	*
* Steering stop turned all the way in

With Fenders
Rim and Wheel Disk Positions
	A	B	C	D	E	F	G
Tire Size	Dimension (C)	Dimension (C)	Dimension (C)	Dimension (C)	Dimension (C)	Dimension (C)	Dimension (C)
13.6-24	N/A	97 mm (3..8 in.)	64 mm (2.5 in.)	48 mm (1.9 in.)	41 mm (1.6 in.)	36 mm (1.4 in.)	25 mm (1 in.)
14.9-24	N/A	N/A	64 mm (2.5 in.)	48 mm (1.9 in.)	41 mm (1.6 in.)	36 mm (1.4 in.)	25 mm (1 in.)

NS43404,00004BA -19-17APR08-1/1
