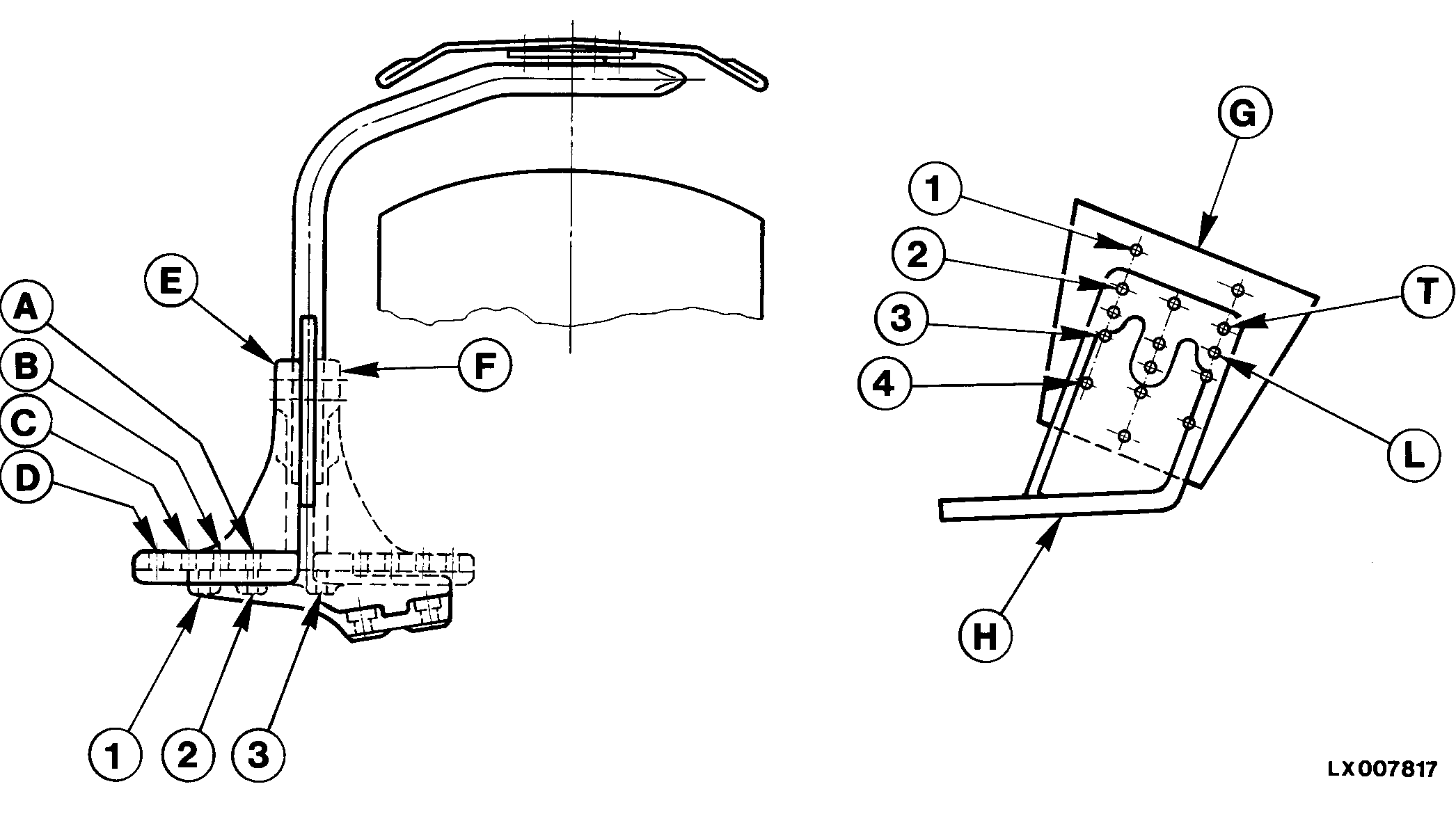

Front Fender Adjustment (MFWD Axle) |
|
E-Bracket Facing Out
F-Bracket Facing In

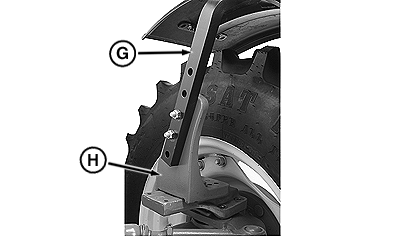

G-Fender
H-Bracket
|
Fenders must be installed in correct position depending on tire size and tread width. Fender width is 400 mm (15.7 in.). The following table indicates correct position for a given tire size, wheel and rim disk position. Explanation of Table PositionsD-2 -Indicates which holes (1, 2, or 3 and A, B, C or D) are bolted together. NOTE: Every time bracket position is reversed, left-hand side bracket must be installed on right-hand side of tractor and vice versa. L/2 -Shows whether upper (T) or lower (L) bracket holes must be used, together with corresponding holes (1, 2, 3 or 4) in fender. NOTE: Upper holes (T) in bracket are not used in this particular machine and tire sizes. Fender Position and Height -indicates correct fender position and height on axle, for example : D-2 , L3. |
|
NS43404,00004BB -19-28MAR08-1/2 |
| Position of Adjustable Rims and Wheel Disks | ||||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||
| Tire Size | ||||||||
| 13.6-24 | Fender Position | N/A | A-2, L/3 | B-3, L/3 | B-1, L/3 | B-2, L/3 | D-2, L/3 | C-3, L/3 |
| 14.9-24 | Fender Position | N/A | N/A | B-3, L/4 | A-3, L/4 | C-1, L/4 | A-3, L/4 | C-3, L/4 |
NS43404,00004BB -19-28MAR08-2/2 |
